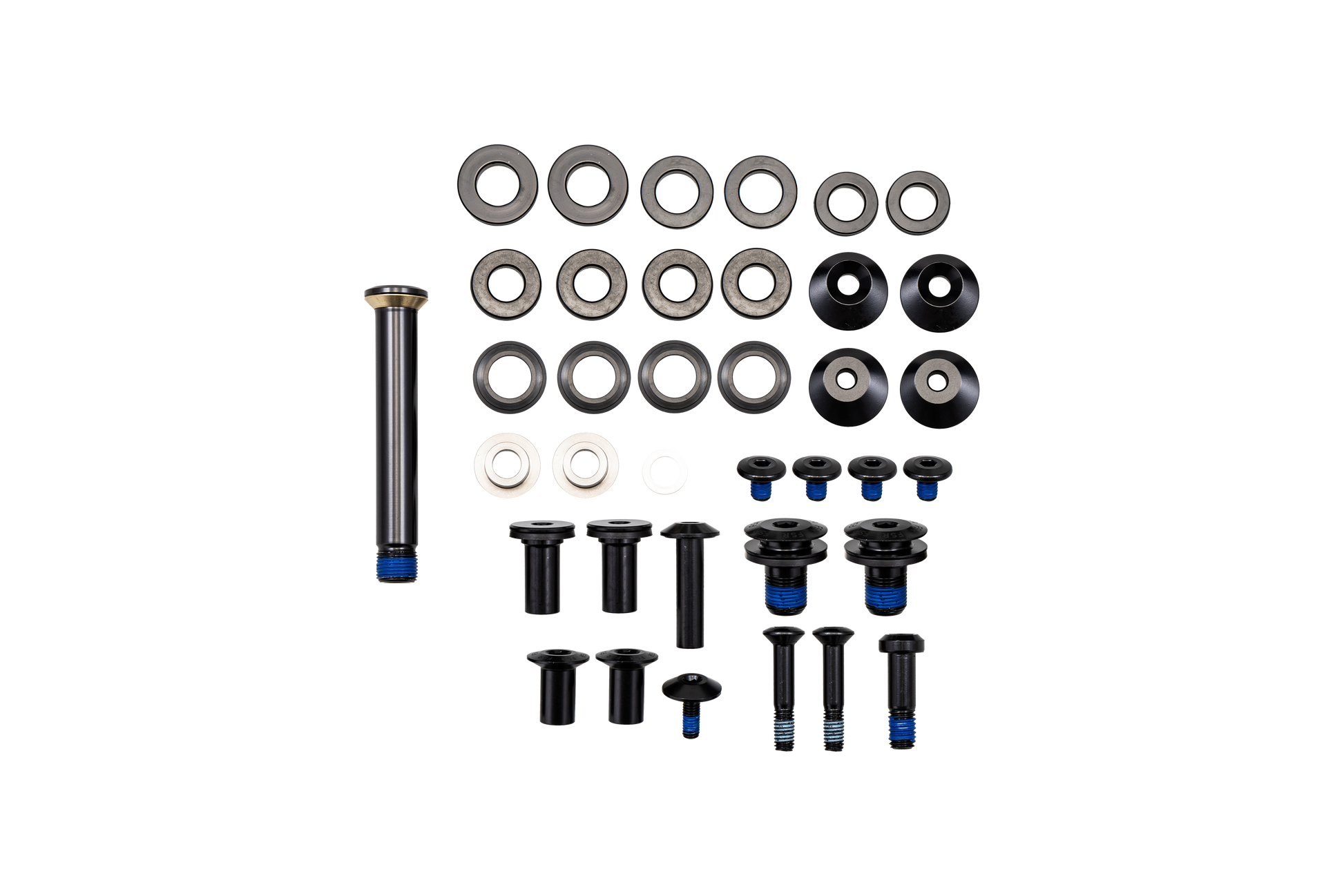

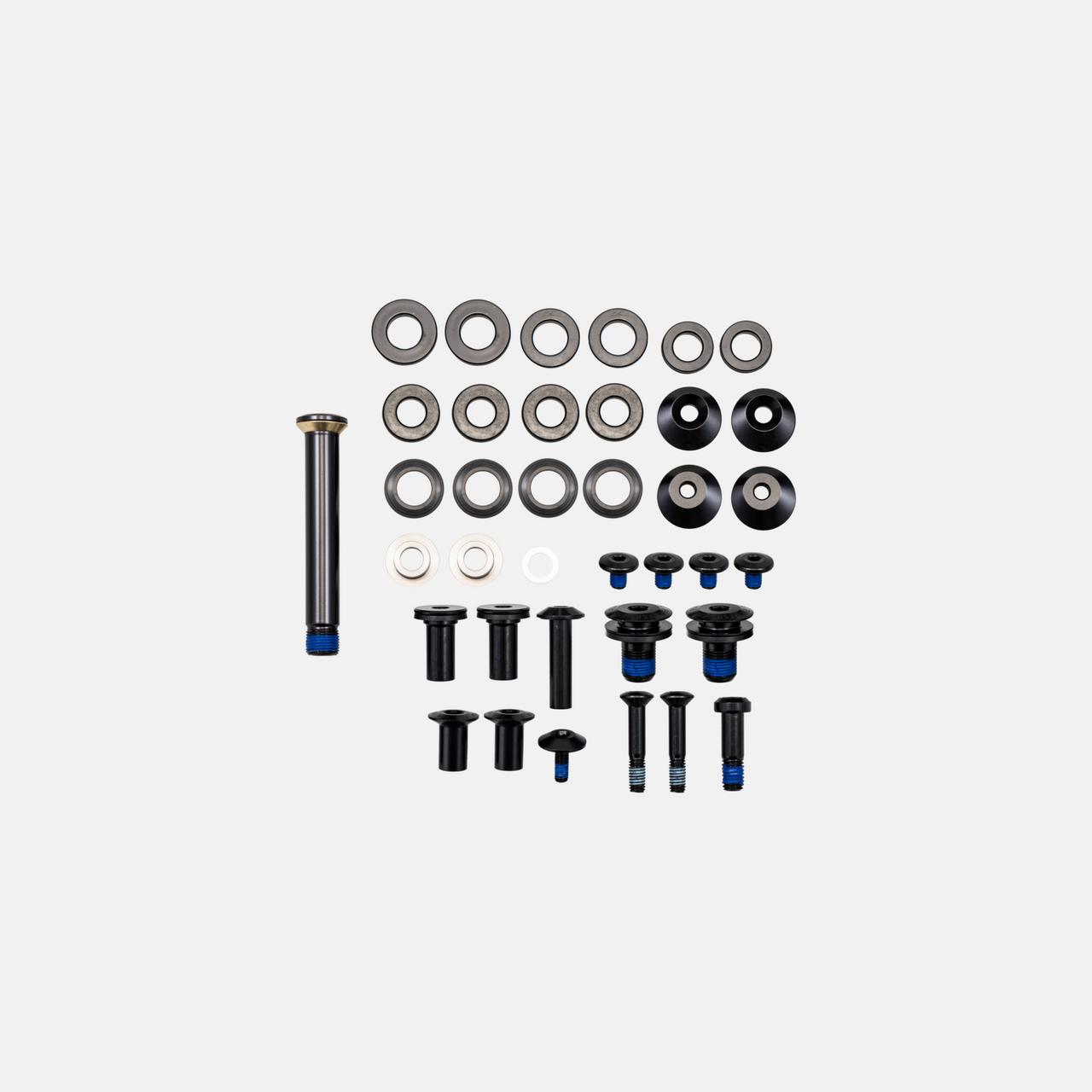

Suspension pivot bolt kit for 2025 Stumpjumper 15 Carbon bikes with all bolts and spacers. Main Pivot (Chainstay) Driveside Bolt: M12x1.0 x 88mm L - Alloy - Torque: 177 in-lbf (20 Nm) - 1 pcs.
Seatstay Horst Link Pivot Bolt: M6X1.0 x 32.5mm L - Steel - Torque: 89 in-lbf (10 Nm) - 2 pcs.
Shock Link to Seat Tube Pivot Bolt: M12x1.0 x 17mm L - Alloy - Torque 177 in-lbf (20 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Axle: 10mm OD x 23mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: M6x1.0 x 8mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
Shock Link to Seatstay Pivot Axle: 10mm W x 19mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
Shock Link to Seatstay Pivot Bolt: M6x1.0 x 8mm L - Steel - Torque: 106.2 in-lbf (12 Nm) - 2 pcs.
Forward Shock Eye Axle: 8m OD x 31.2mm - Steel - Torque: 49 in-lbf (5.5 Nm) - 1 pcs.
