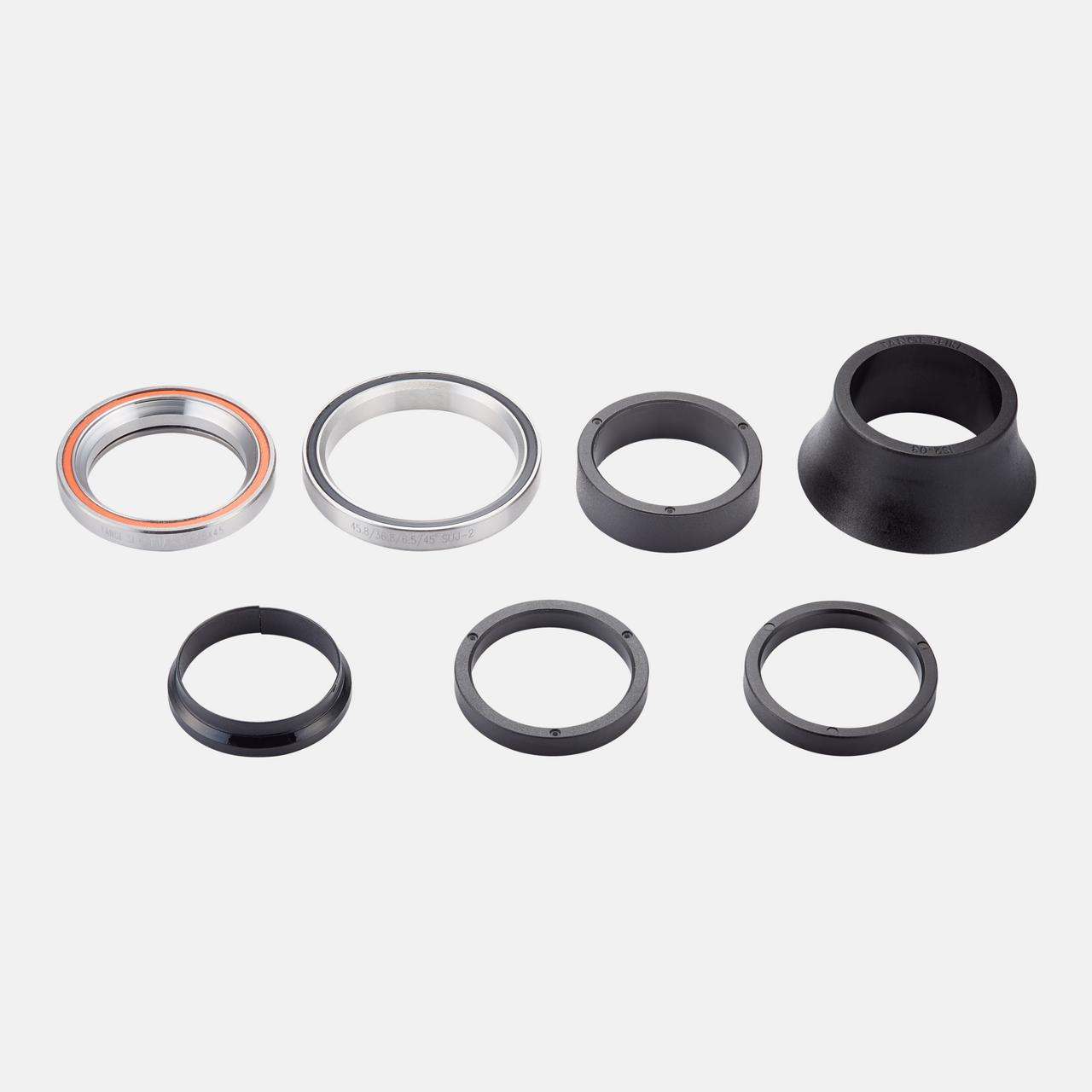

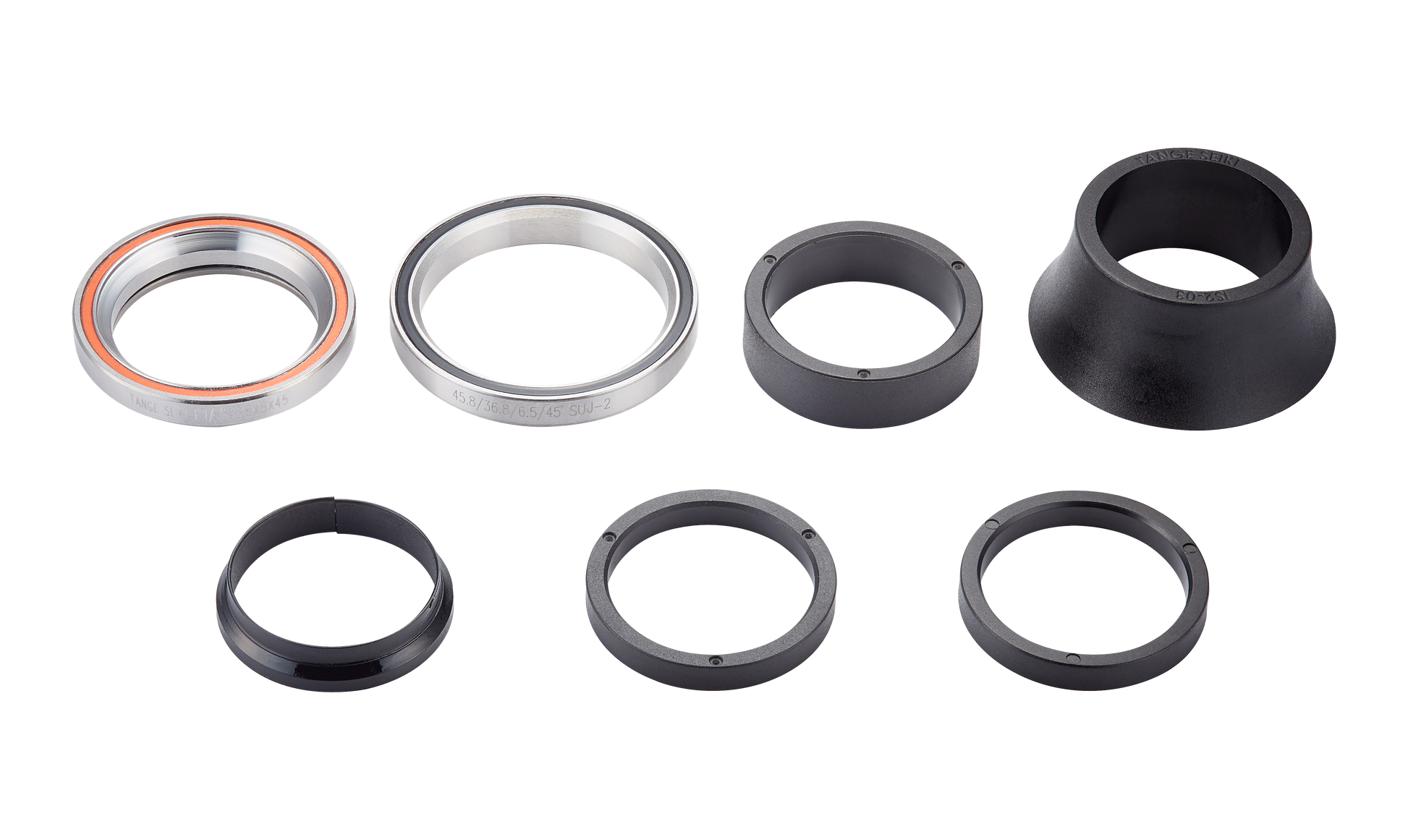

HDS INTEGRATED, 1-1/8IN UPPER, 45.8OD X 36.8ID X 6.5MM LOWER, 45X45 DEG, 46MM CONE COVER, W/ SPACERS (IS248S-20P(46))

Complete integrated headset with 1-1/8" upper and 45.8mm OD lower bearing for non-Future Shock equipped alloy Diverge model bikes with a 1-1/8" steerer fork. Upper Bearing: 41.8mm OD x 30.5mm ID x 8mm Thick (45x45 degree)

Lower Bearing: 45.8mm OD x 36.8mm ID x 6.5mm Thick (45x45 degree)

46mm OD / 15mm tall plastic top transition cover.

Split plastic compression ring, 7mm tall.

5mm plastic headset spacer (2 pcs.)

10mm plastic headset spacer (1 pcs.)
