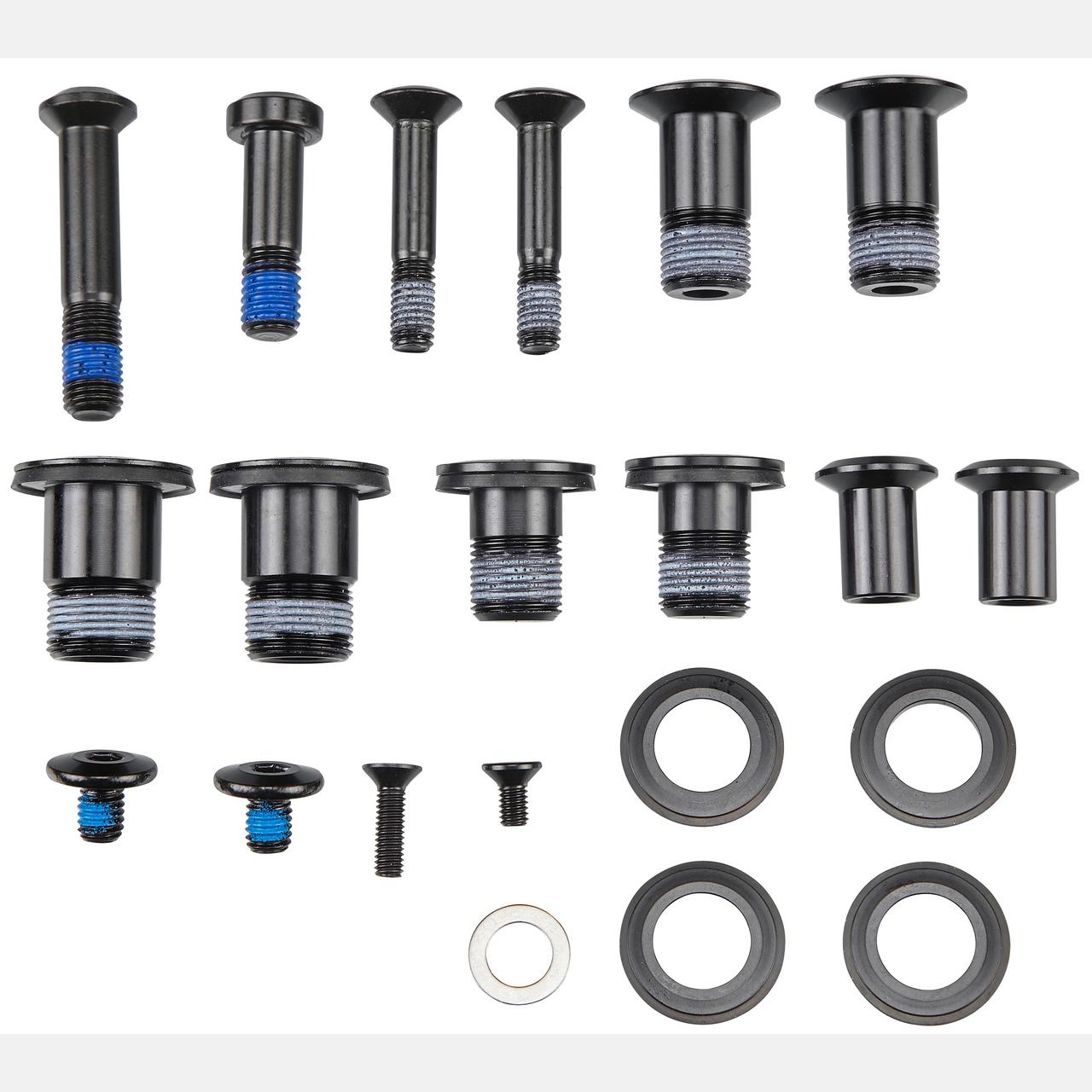

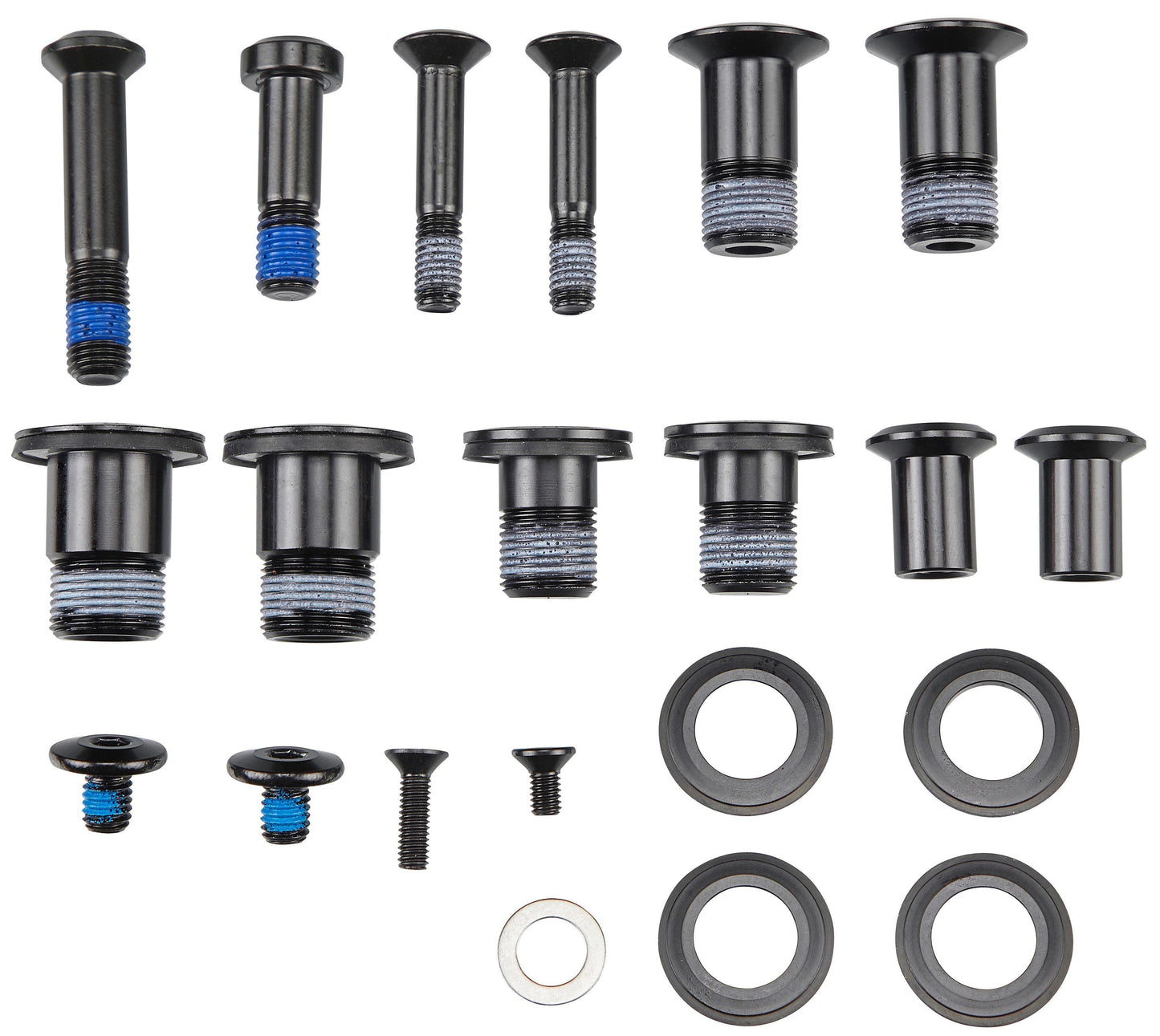

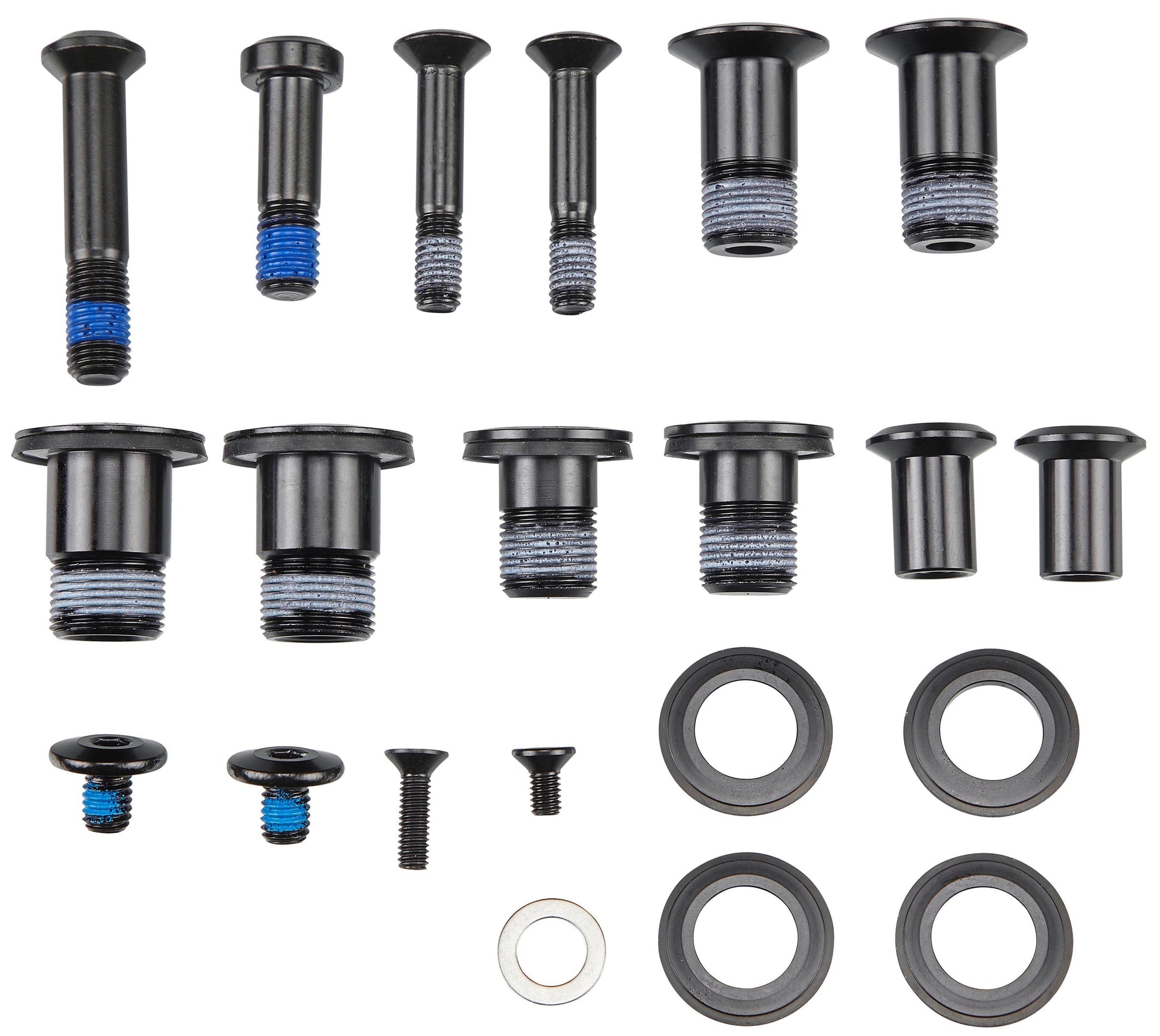

Suspension pivot bolt kit for 2021 Stumpjumper Alloy bikes with all bolts and spacers Main Pivot (Chainstay) Driveside Bolt: Reverse Thread - 15mm W x 22mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
Main Pivot (Chainstay) Non-Driveside Bolt: 15mm W x 22mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
Seatstay Horst Link Pivot Bolt: 6mm W x 32.5mm L - Steel - Torque: 90 in-lbf (10 Nm) - 2 pcs.
Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque 180 in-lbf (20 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 6mm W x 8mm L - Steel - Torque: 60 in-lbf (7 Nm) - 2 pcs.
Shock Link to Seatstay Pivot Bolt: 12mm W x 27mm L - Steel - Torque: 180 in-lbf (20 Nm) - 2 pcs.
This kit also includes all axle and pivot spacers. Refer to schematic for details.
