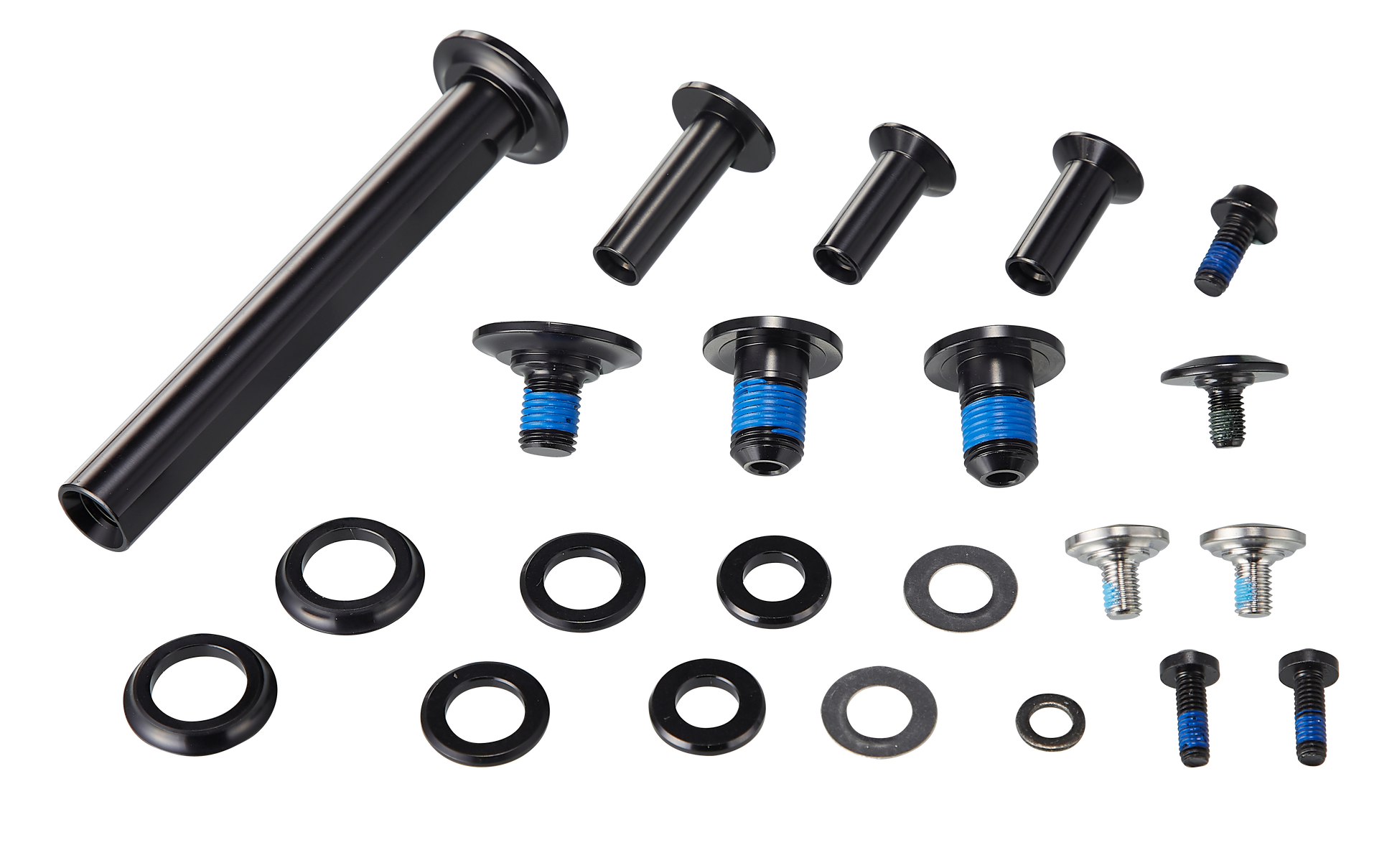

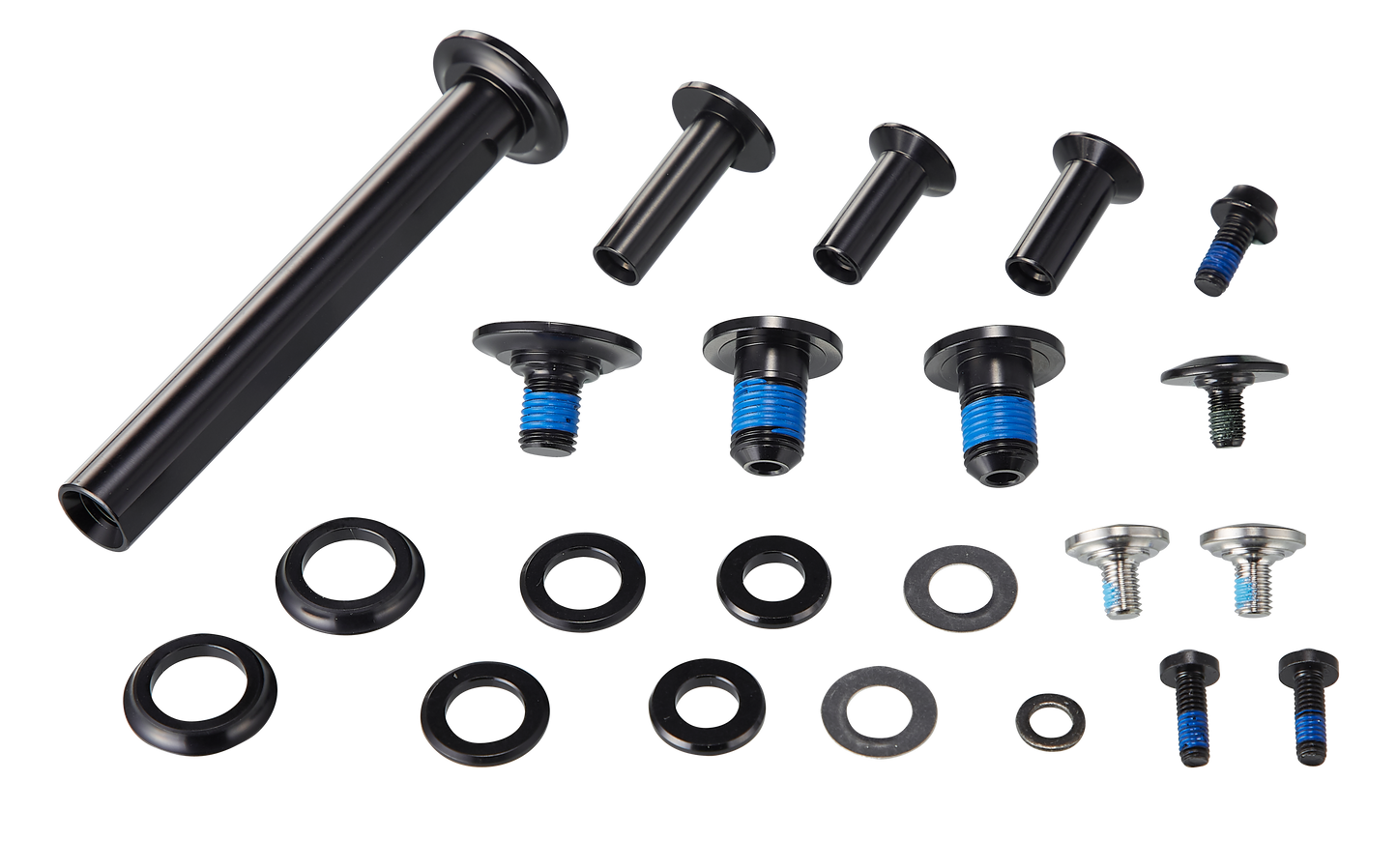

BLT KIT, MY21 EPIC, SUSPENSION PIVOT BOLT KIT (W/ PIVOT SPACERS)

Suspension pivot bolt kit for 2021 Epic bikes with all bolts and spacers Main Pivot Axle: 12mm W x 86mm L - Alloy - 1 pcs.

Main Pivot Bolt: 8 mm W x 12.2mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 1 pcs.

Main Pivot Spacer: 12.1mm ID x 19mm OD x 3mm W - Alloy - 2 pcs.

Shock Link to Seat Tube Pivot Bolt: 10mm W x 16mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 2 pcs.

Shock Link to Seat Tube Pivot Spacer: 10.1mm ID x 16.5mm OD x 2mm W - Alloy - 2 pcs.

Shock Link to Seatstay Pivot Axle: 8mm W x 22.33mm L - Alloy - 2 pcs.

Shock Link to Seatstay Pivot Bolt: 5mm W x 8.6mm L - Alloy - Torque: 53 in-lbf (6 Nm) - 2 pcs.

Shock Link to Seatstay Pivot Spacer: 8.1mm ID x 15.5mm OD x 2.5mm W - Alloy - 2 pcs.

Forward Shock Eye Axle: 8mm W x 29.5mm L - Alloy - 1 pcs.

Forward Shock Eye Bolt: 5mm W x 8mm L - Alloy - Torque: 53 in-lbs (6 Nm) 1 pcs.
