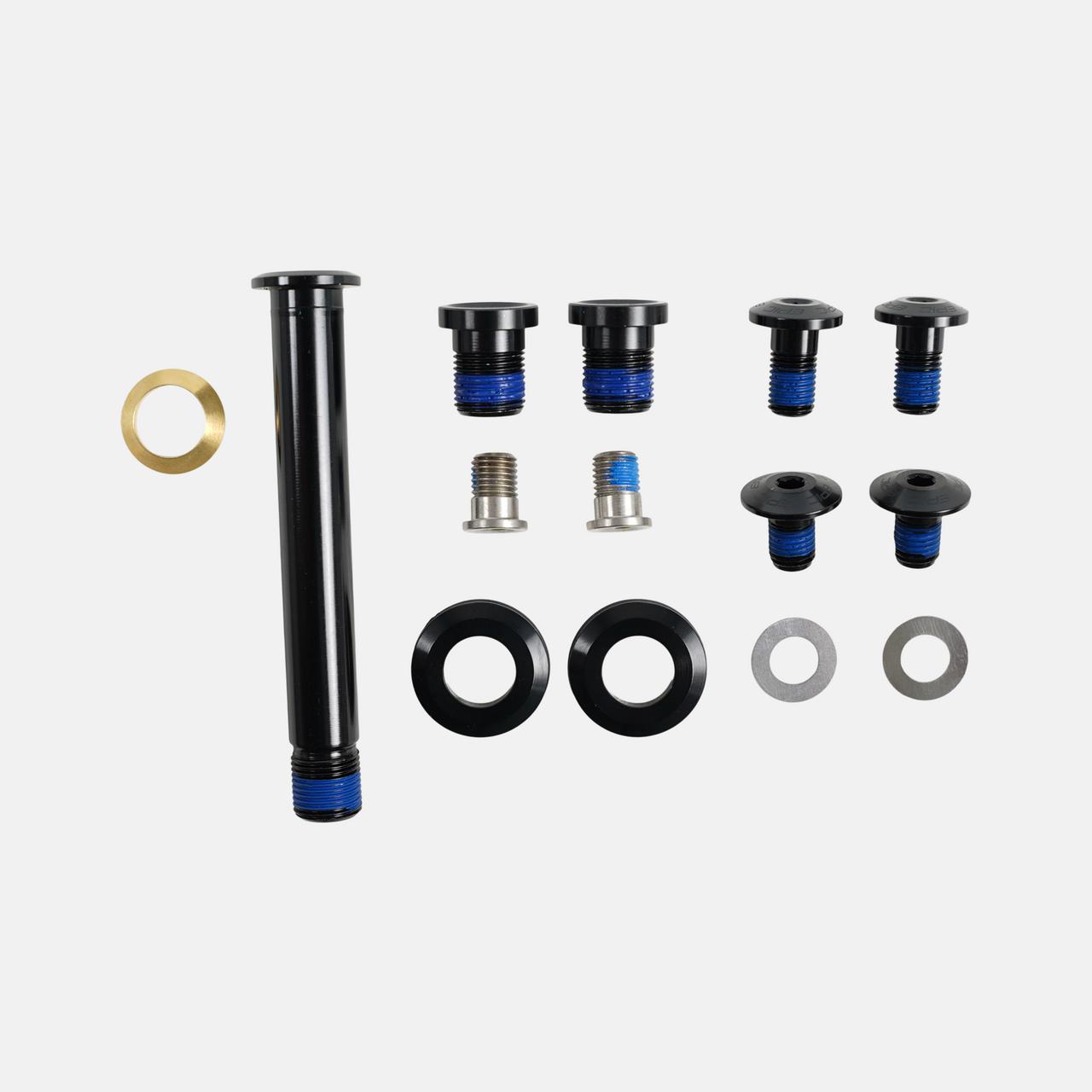

BLT KIT, MY18-20 EPIC, CARBON FRAME, SUSPENSION PIVOT BOLT KIT (USE W/ S194500001)

Suspension pivot bolt kit for 2018 - 2020 Epic Carbon bikes with black anodized bolts Main Pivot (Chainstay) Pivot Axle: 12mm W x 90mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 1 pcs.

Main Pivot (Chainstay) Pivot Axle Washer: 12.1mm ID x 18mm OD x 3mm W - Brass - 1 pcs.

Shock Link to Seat Tube Pivot Bolt: 8mm W x 8mm L - Alloy - Torque: 80 in-lbf (9 Nm) - 2 pcs.

Shock Link and Extension to Seatstay Pivot Bolt (Outer): 12mm W x 14.3mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 2 pcs.

Shock Link and Extension to Seatstay Pivot Bolt (Inner): Reverse Thread - 8mm W x 11mm L - Steel - Torque: 80 in-lbf (9 Nm) - 2 pcs.

Upper Shock Eye Bolt: 8mm W x 11.5mm L - Alloy - Torque: 60 in-lbf (6.8 Nm) - 2 pcs.

Upper Shock Eye Washer: 8.25mm ID x 15mm OD x 0.3mm W - Steel - 2 pcs.

Shock Link to Seat Tube Spacers Sold Seperately: SKU - S194500001
