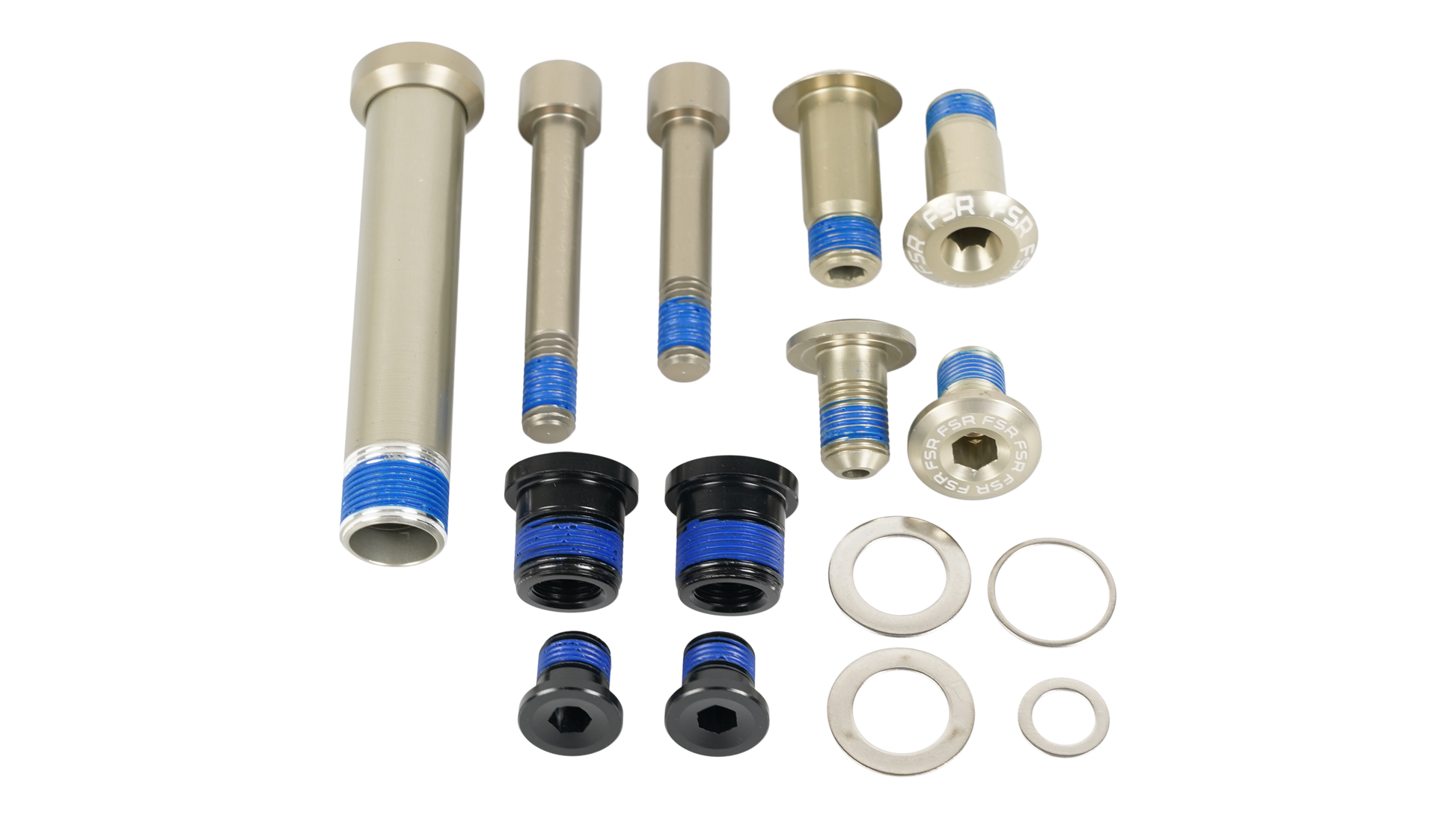

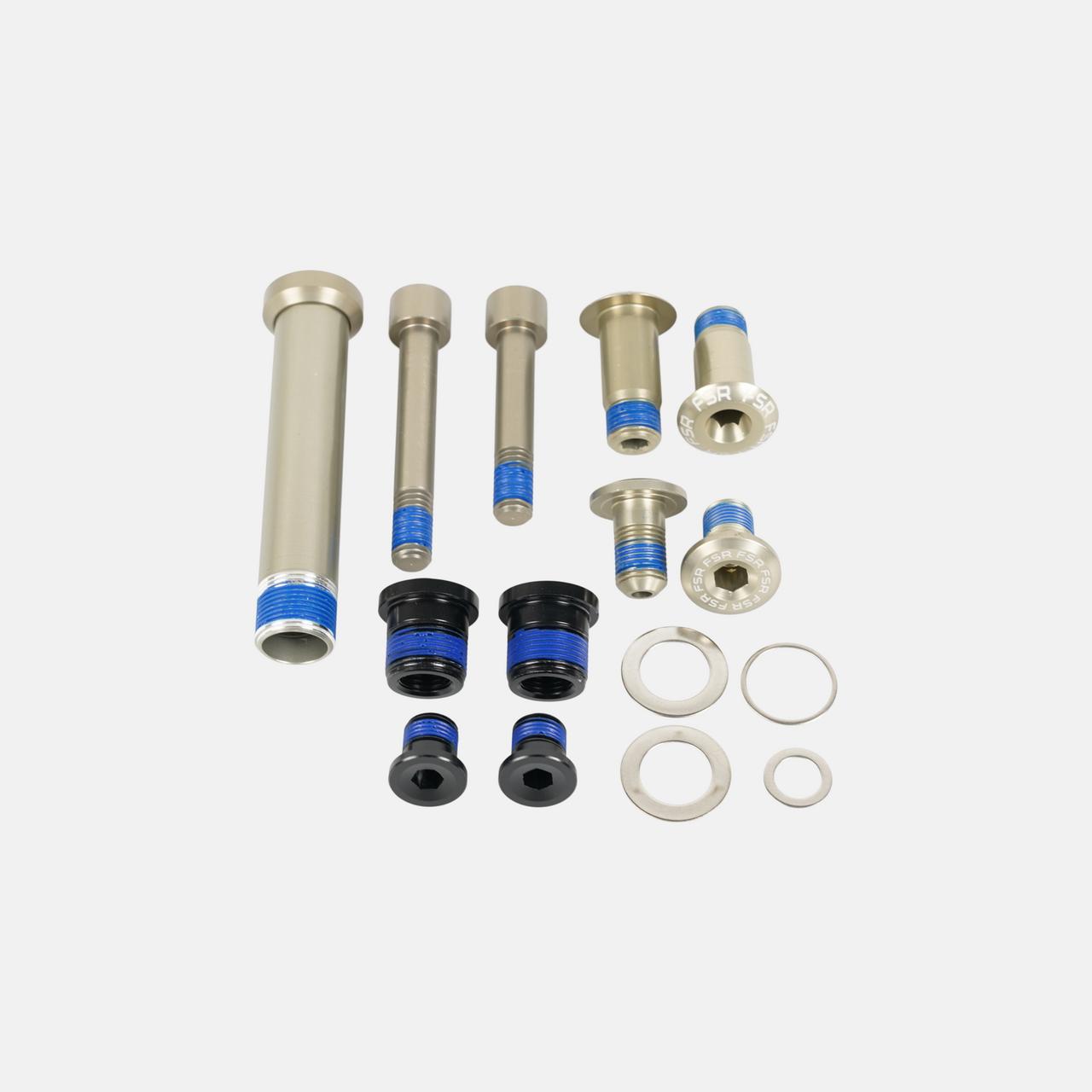

BLT KIT, MY16-18 CAMBER FSR, SUSPENSION PIVOT BOLT KIT

Suspension pivot bolt kit for 2016 - 2018 Camber bikes Main Pivot (Chainstay) Axle: 15mm W x 77.5mm L - Alloy - Torque: 182 in-lbf (20.5 Nm) - 1 pcs.

Main Pivot (Chainstay) Axle Cone: 15mm ID x 20.5mm OD x 6.7mm W - Alloy - 1 pcs.

Main Pivot (Chainstay) Washer: 15.5mm ID x 18mm OD x 0.7mm W - Steel - 1 pcs.

Seatstay Horst Link Pivot Bolt: 12mm W x 28.3mm W - Alloy - Torque: 113 in-lbf (12.8 Nm) - 2 pcs.

Seatstay Horst Link Pivot Washer: 12.8mm ID x 20mm OD x 0.5mm W - Steel - 2 pcs.

Shock Link to Seat Tube Pivot Bolt: 10mm W x 17.4mm L - Alloy - Torque: 96 in-lbf (10.8 Nm) - 2 pcs.

Shock Link to Seatstay (Inner) Pivot Bolt: 10mm W x 14mm L - Alloy - Torque: 96 in-lbf (10.8 Nm) - 2 pcs.

Shock Link to Seatstay (Outer) Pivot Bolt: 15mm W x 18.6mm L - Alloy - Torque: 152 in-lbf (17.2 Nm) - 2 pcs.

Upper Shock Eye Bolt (Carbon Frame): 8mm W x 54mm L - Alloy - Torque: 113 in-lbf (12.8 Nm) - 1 pcs.

Upper Shock Eye Bolt (Alloy Frame): 8mm W x 42mm L - Alloy - Torque: 113 in-lbf (12.8 Nm) - 1 pcs.
