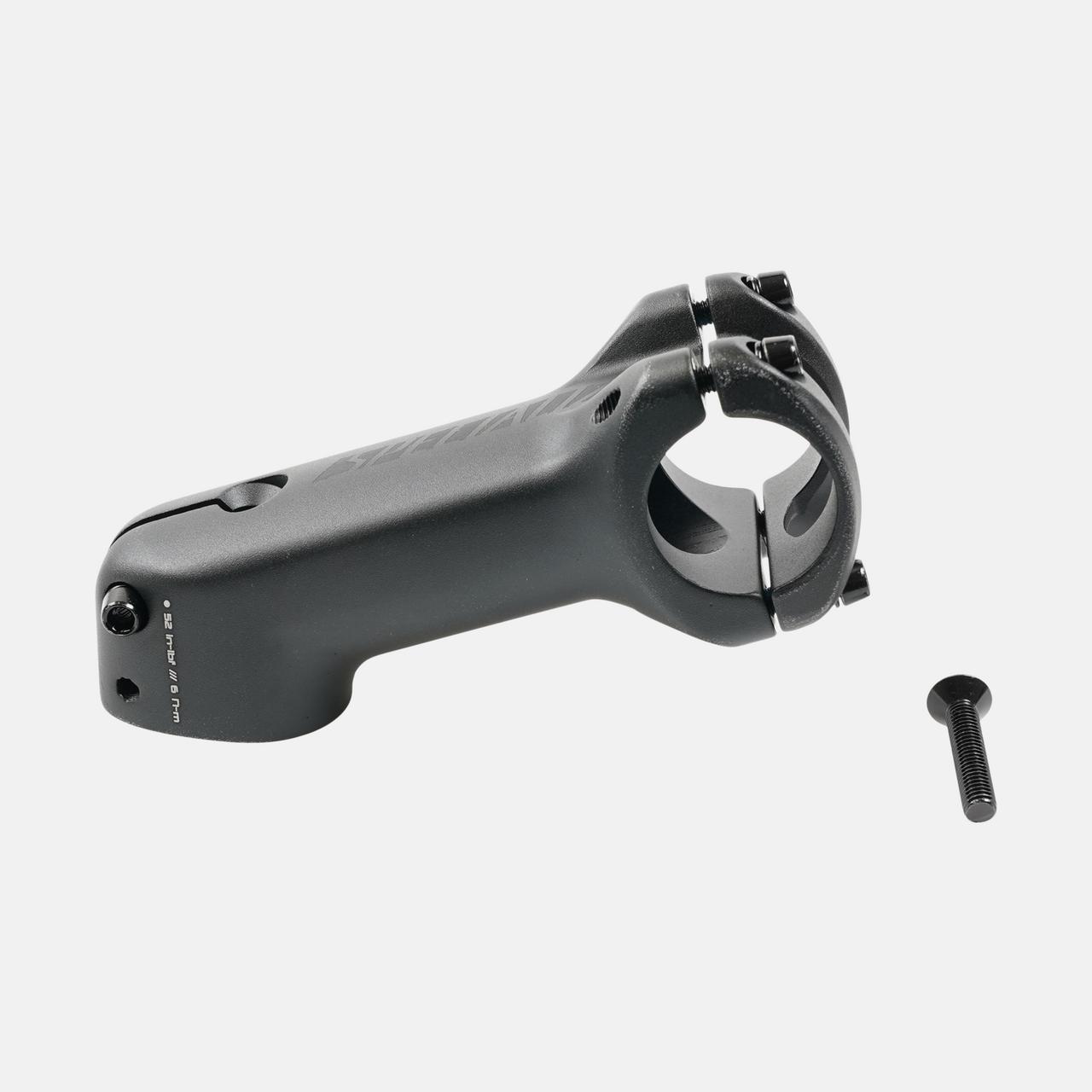

90mm 1-1/8" threadless alloy Flow-Set stem with a 20-degree rise that provides a uniquely clean looking cockpit due to the integration of headset cover, stem spacers, and stem. Length: 90mm
Rise: 20-Degree
Clamp Diameter: 31.8mm
Steerer Tube Clamp Diameter: 1-1/8” (28.6mm)
Clamp Height: 33.7mm Ream Depth
Material: Alloy
Steerer Tube Clamp: Max Torque: 52 in-lbf. (6 Nm)
Faceplate Clamp: Max Torque: 44 in-lbf. (5.0 Nm)
Be sure to note minimum steerer insertion requirement markings on Flow-Set stems.
