Sinch

MODE 3

MODE 3

Regular price $3,999.99 NZD
Regular price Sale price $3,999.99 NZD
Sale Sold out
Shipping calculated at checkout.
Colour
Size

Dependable Performance

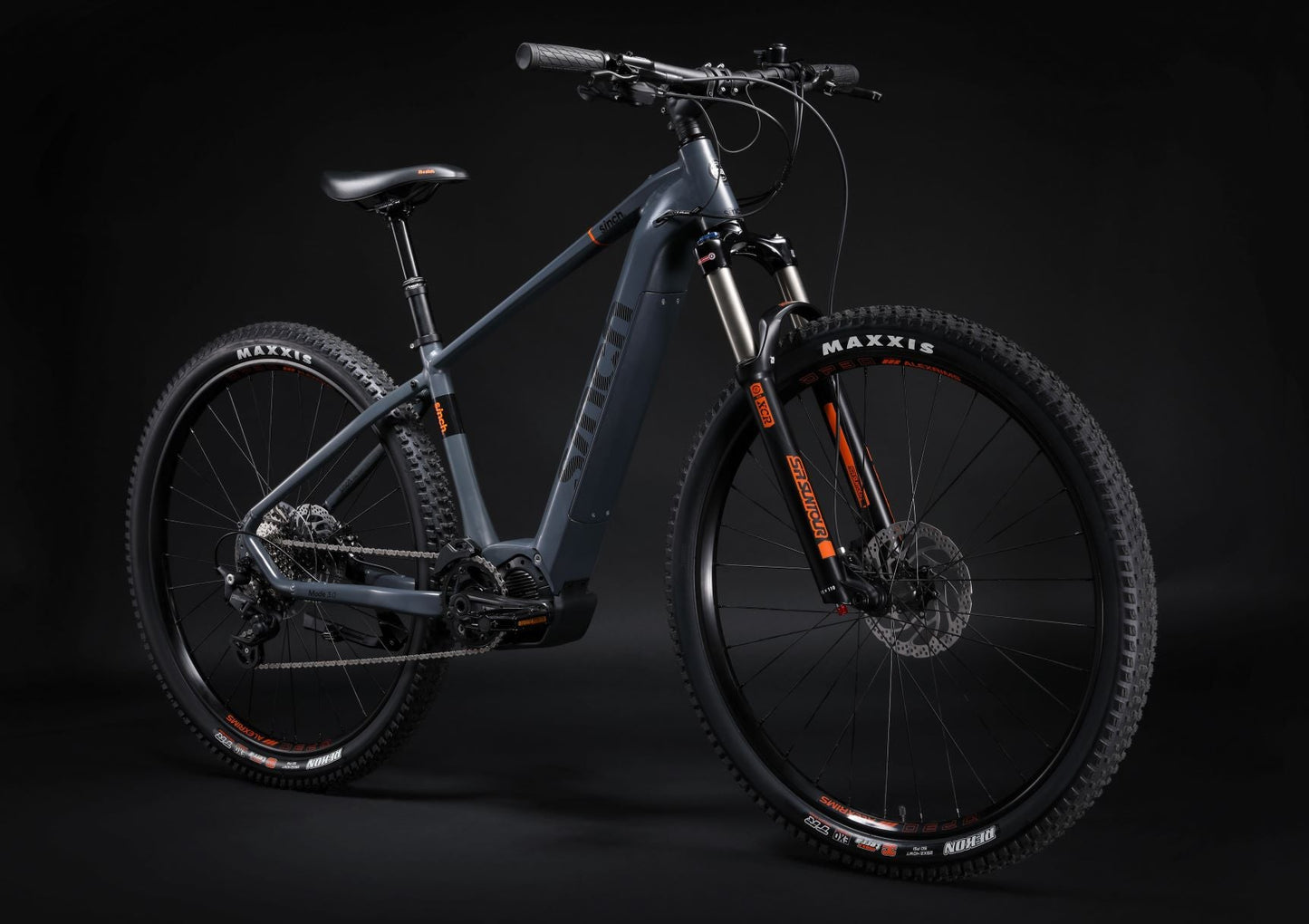

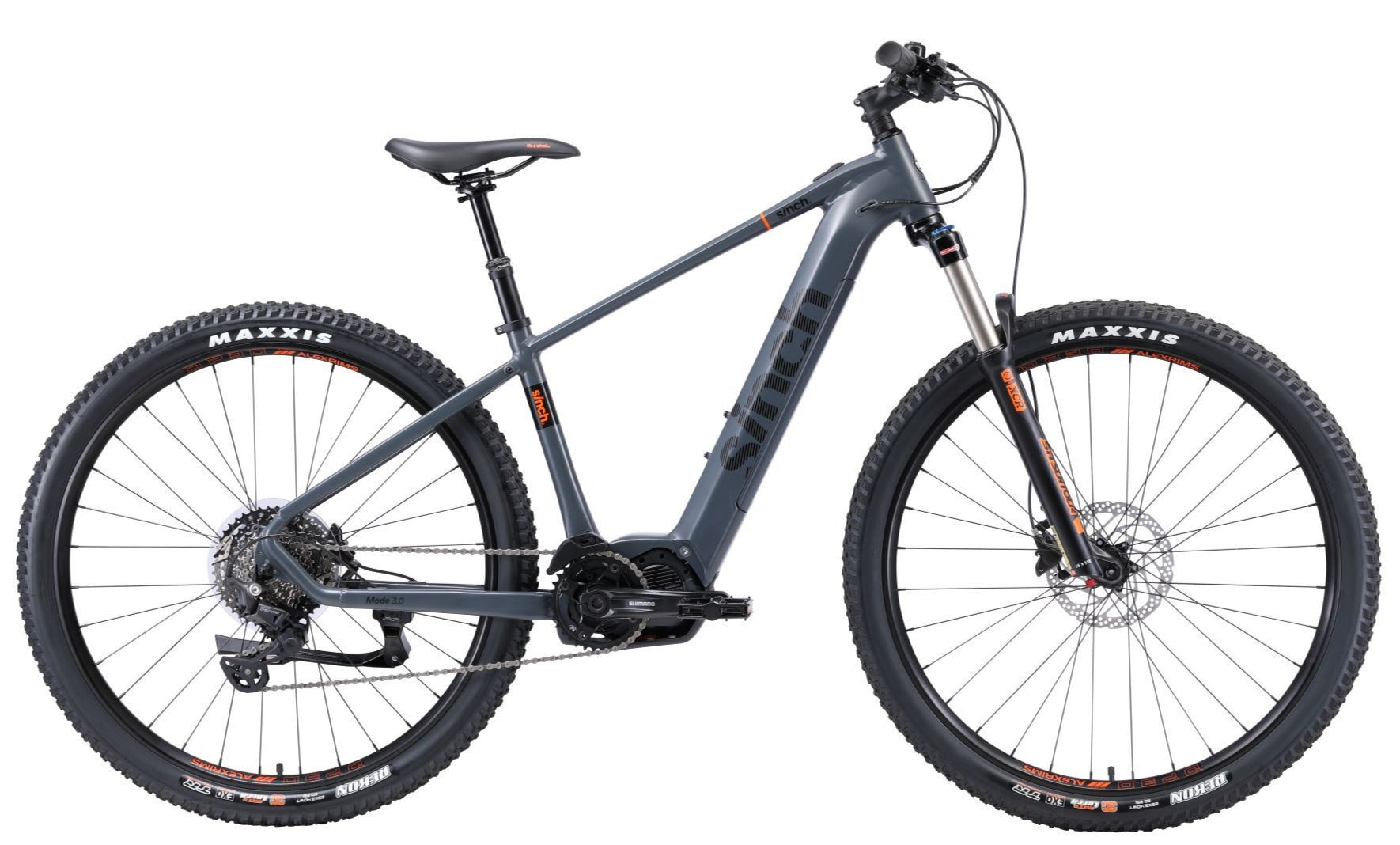

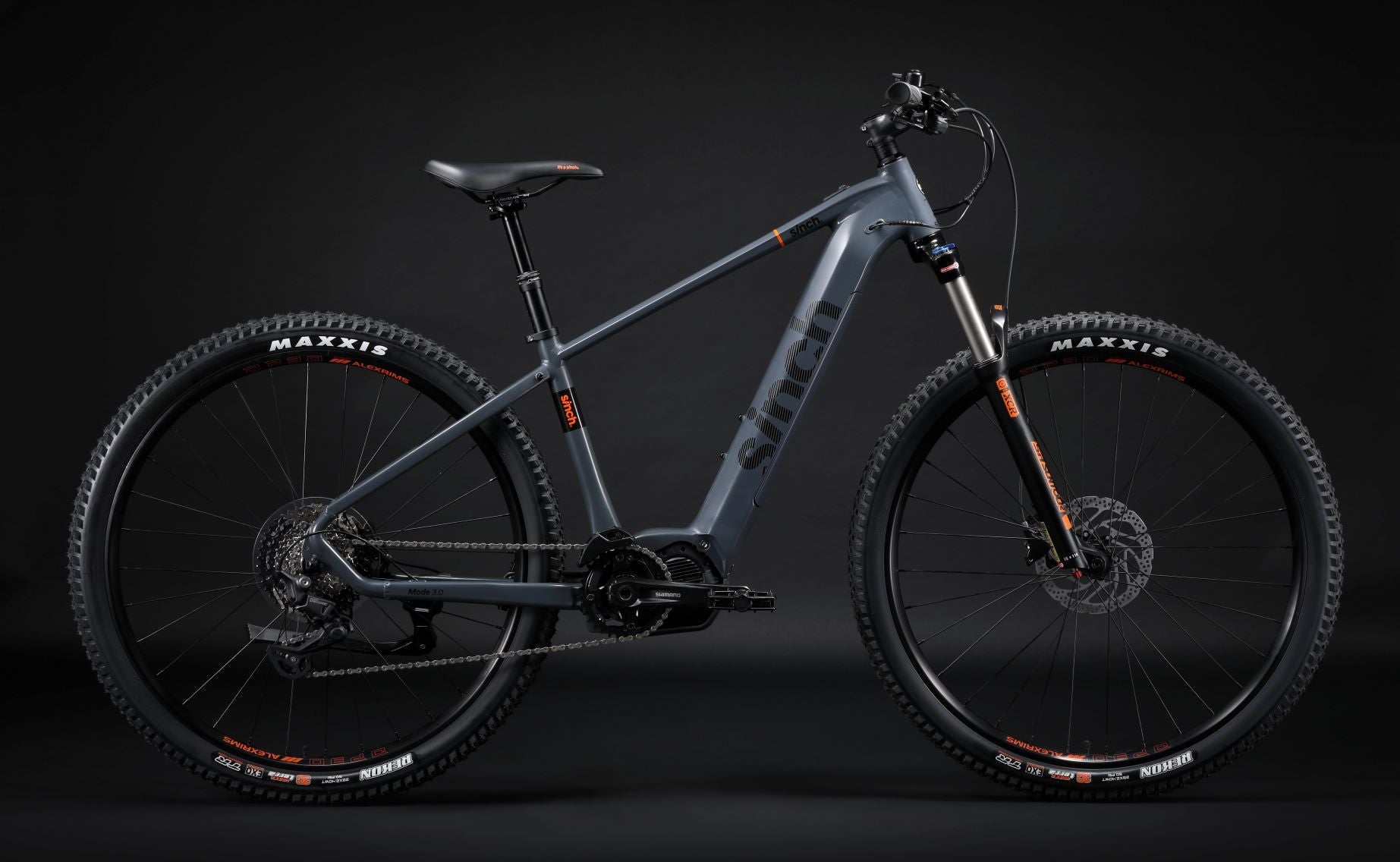

The Mode 3 is a great bike for on road or off-road use whether it’s riding around town or exploring the cycle trails of NZ.

All-day Battery

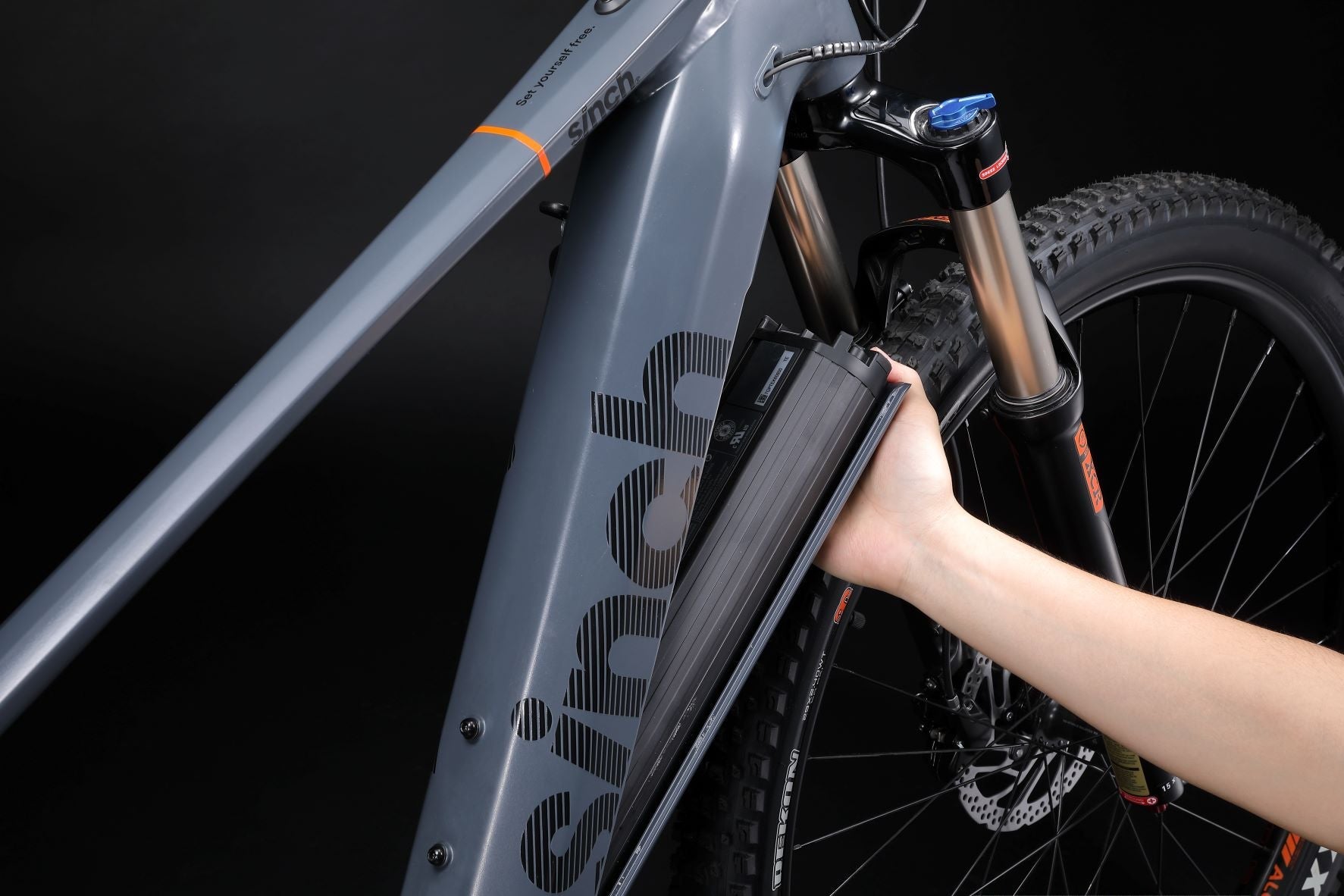

Shimano STEPs E8035 504Wh Internal removable battery extends your riding range depending on rider assist mode, terrain and weather conditions.

Powerful Pedal Assist

Pedal assist your way through the toughest challenges.

Safe Speed

Get around and explore or commute more with assisted speed up to 32 km/h.

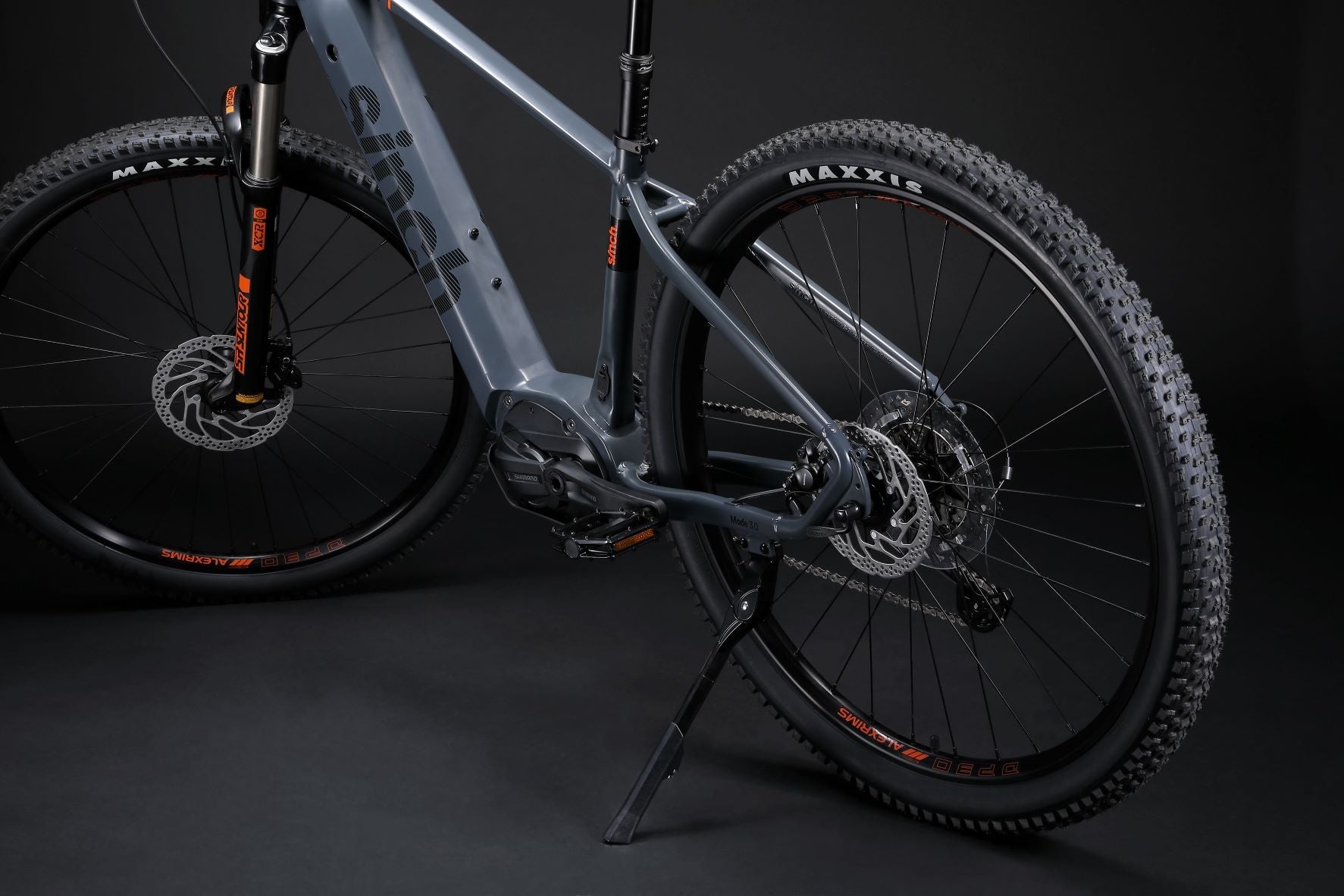

Dependable Drivetrain

Quality Shimano components make for a reliable riding experience.

Reliable Safety

No matter what you choose to do, count on Mode 3 to keep you safe and sound throughout your adventure. What more can you ask for?

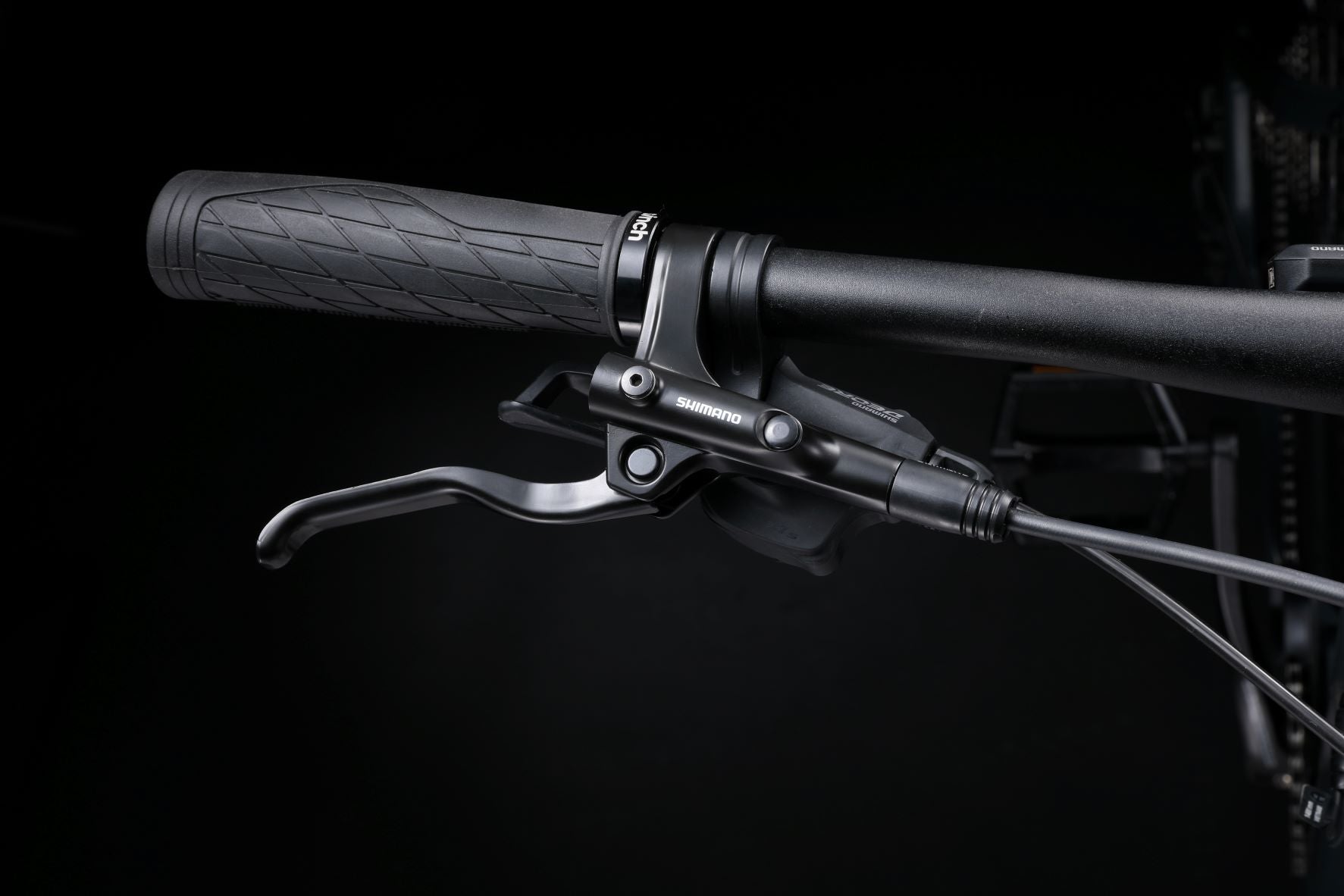

Effective Brakes

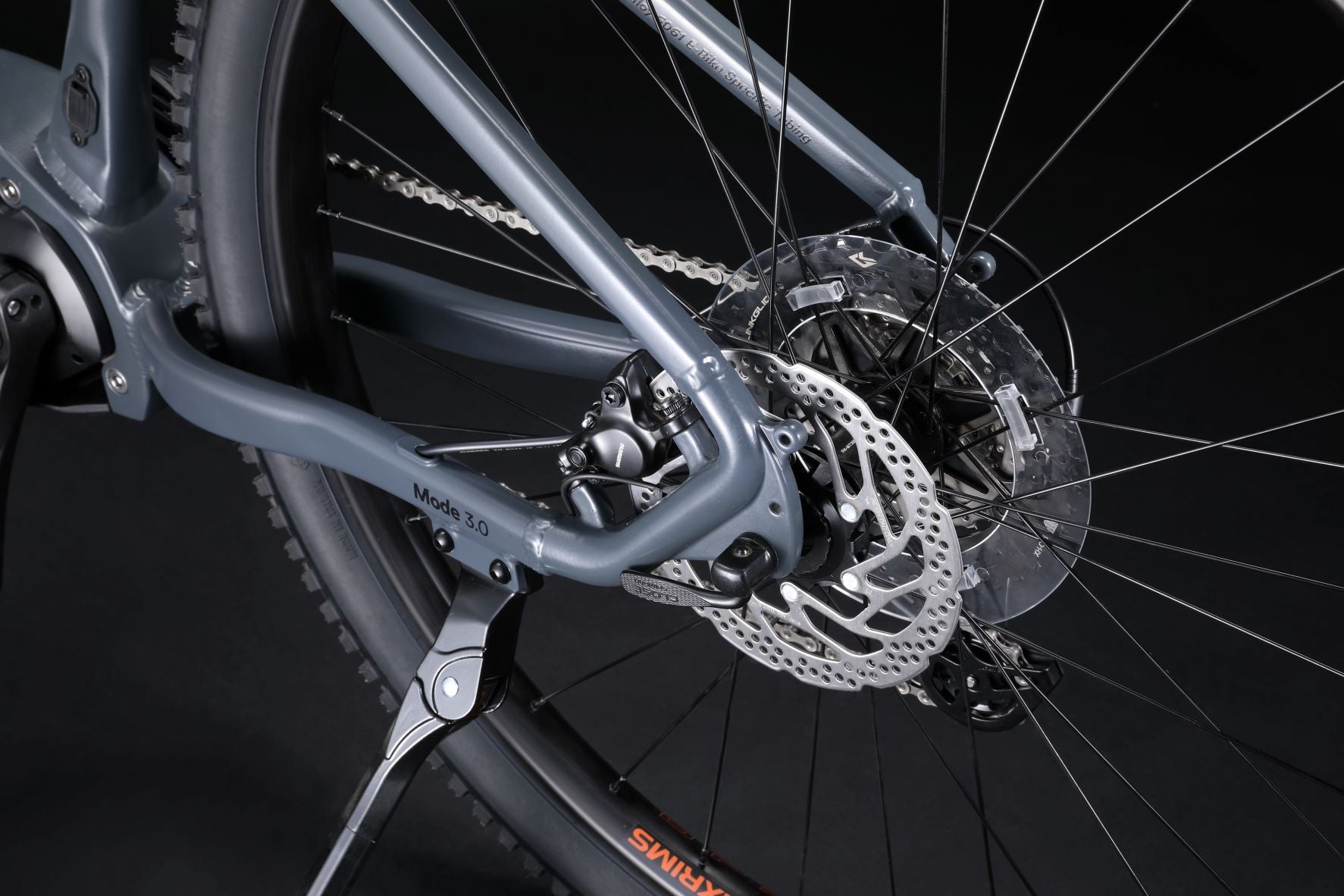

Shimano hydraulic-disc brakes ensure effective and timely stops.

Proper Traction

Hyrdaulic disc brakes will help you stop quickly and safely

Get a Head's Up

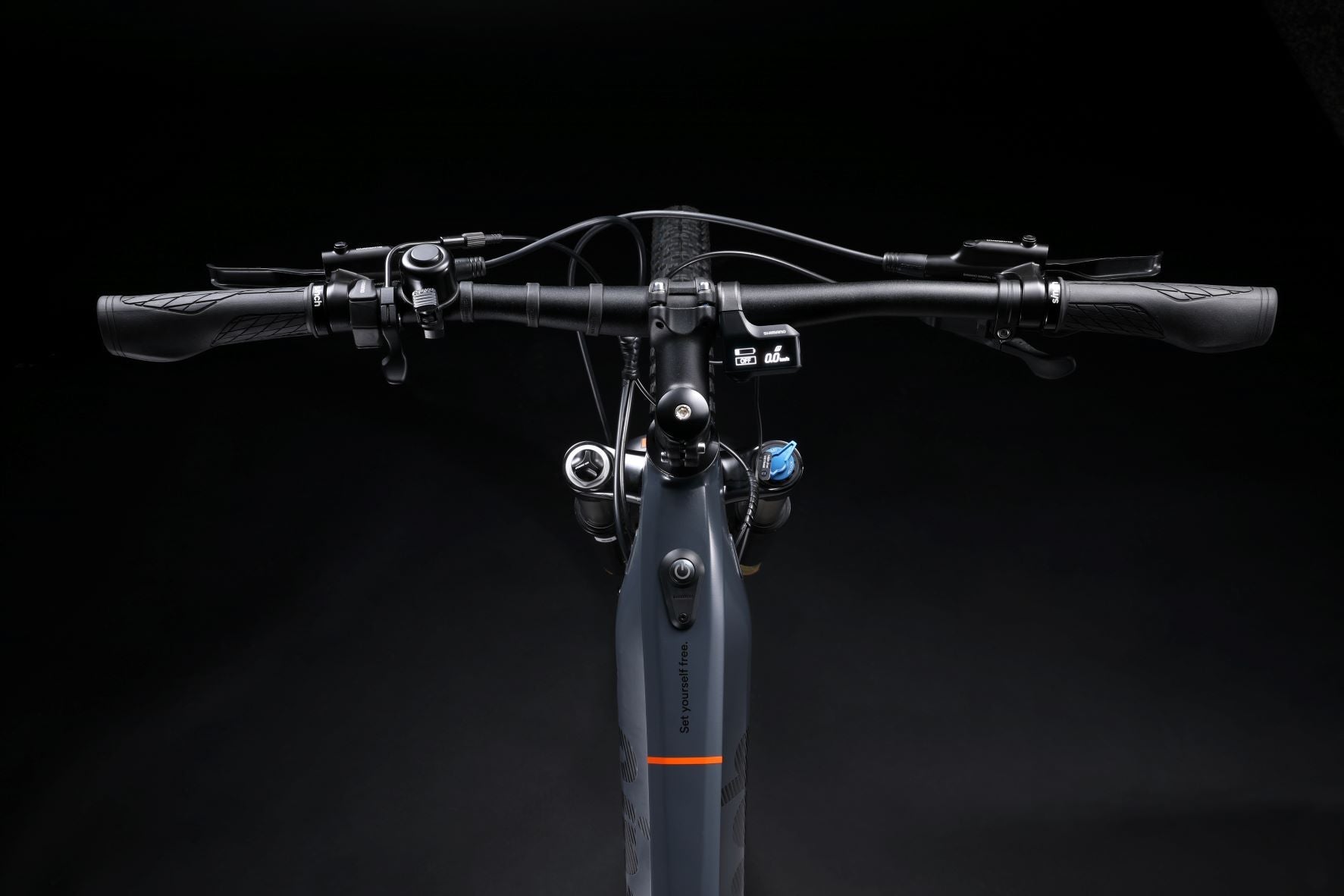

All your ride information in a compact low profile display.

Unparalleled Comfort

Being built for performance doesn’t necessarily mean that there should be compromises on comfort. The Mode 3 is designed to be a comfortable ride always.

All-round Comfort

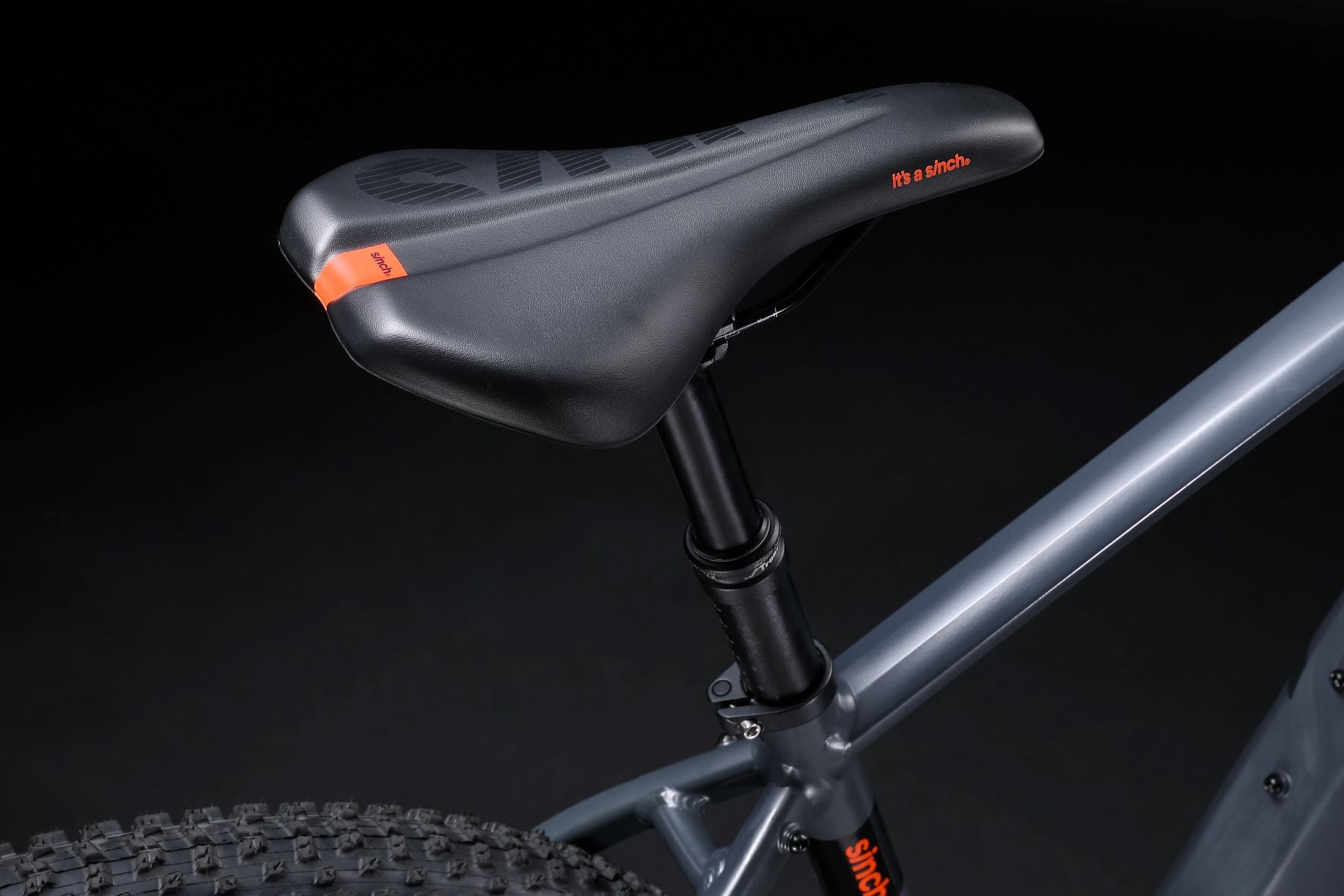

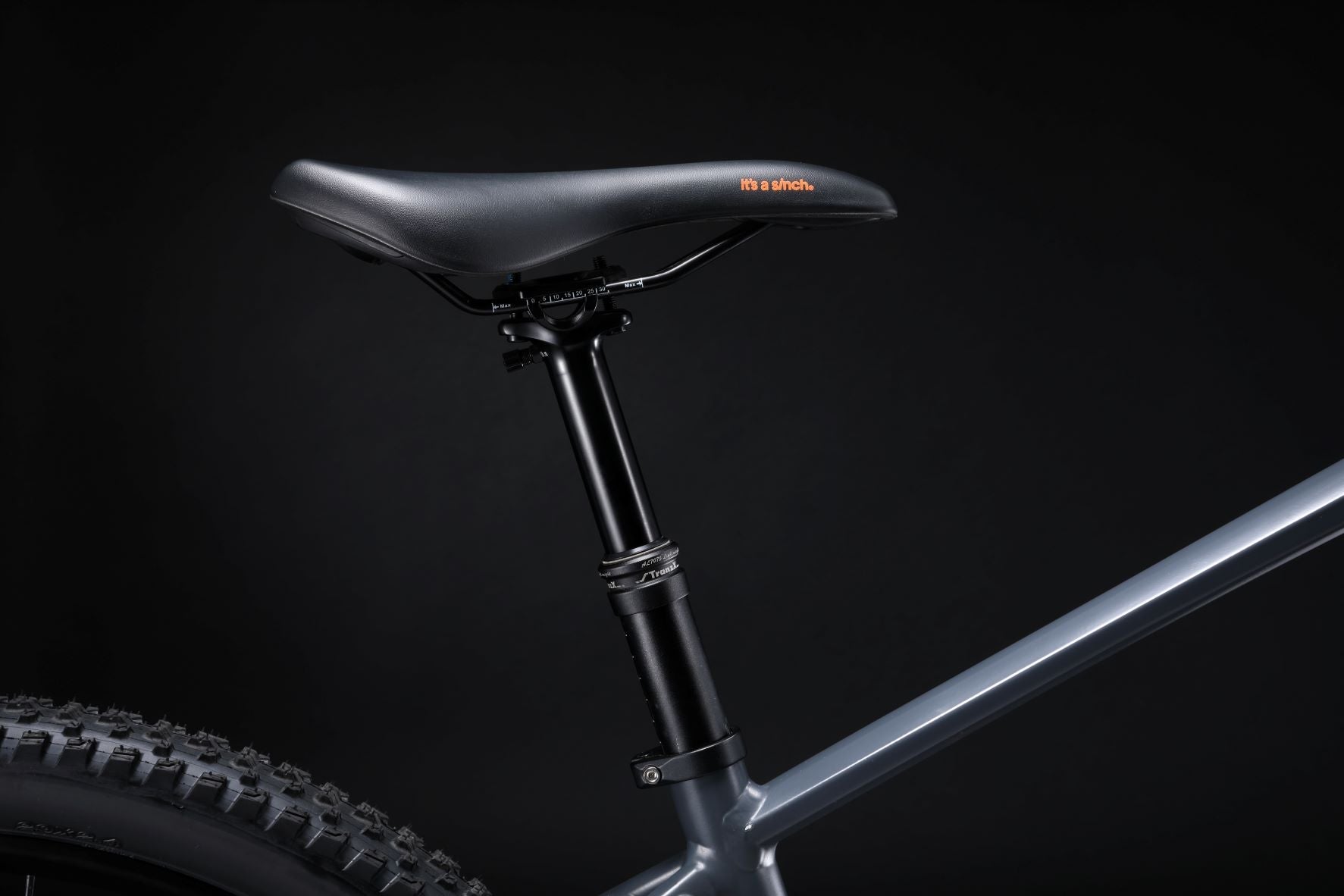

Every touch point including the suspension dropper seat post, the saddle and grips are designed with your comfort in mind.

Lightweight

Low total weight makes for easy transport and loading.

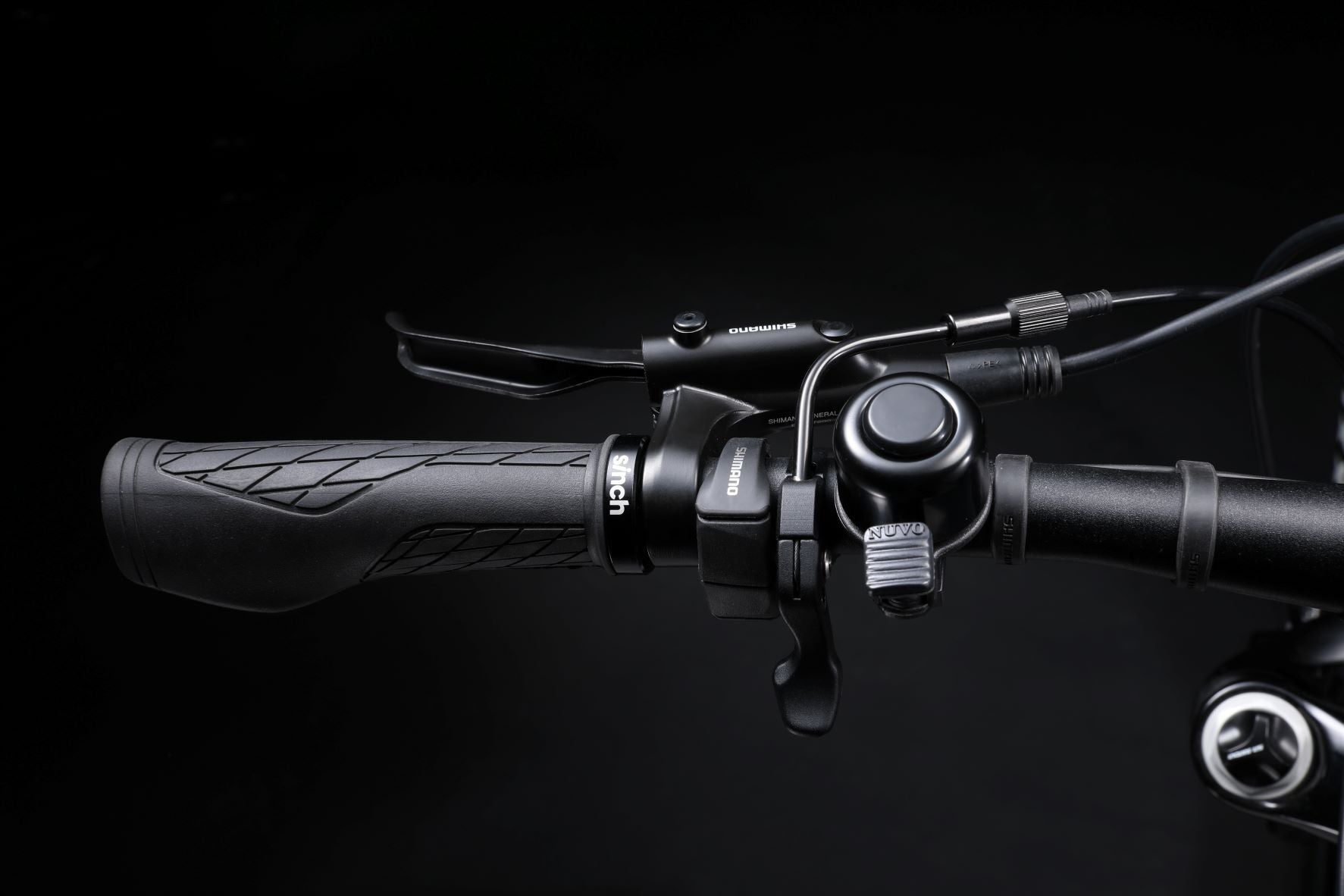

Seamless Shifting

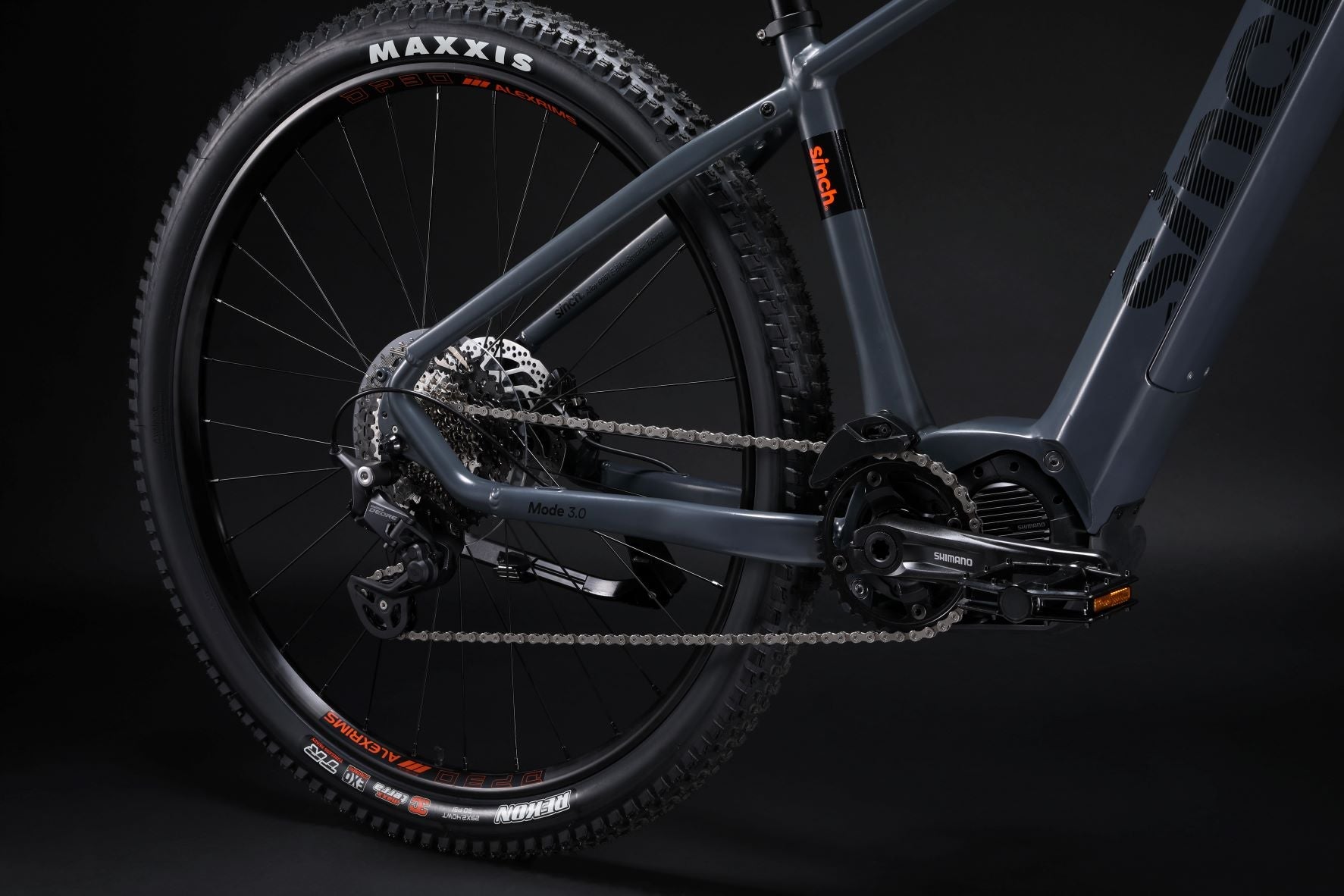

With the new Shimano Link glide technology the Mode 3 is guaranteed to make every ride smooth and enjoyable.

Smooth Ride

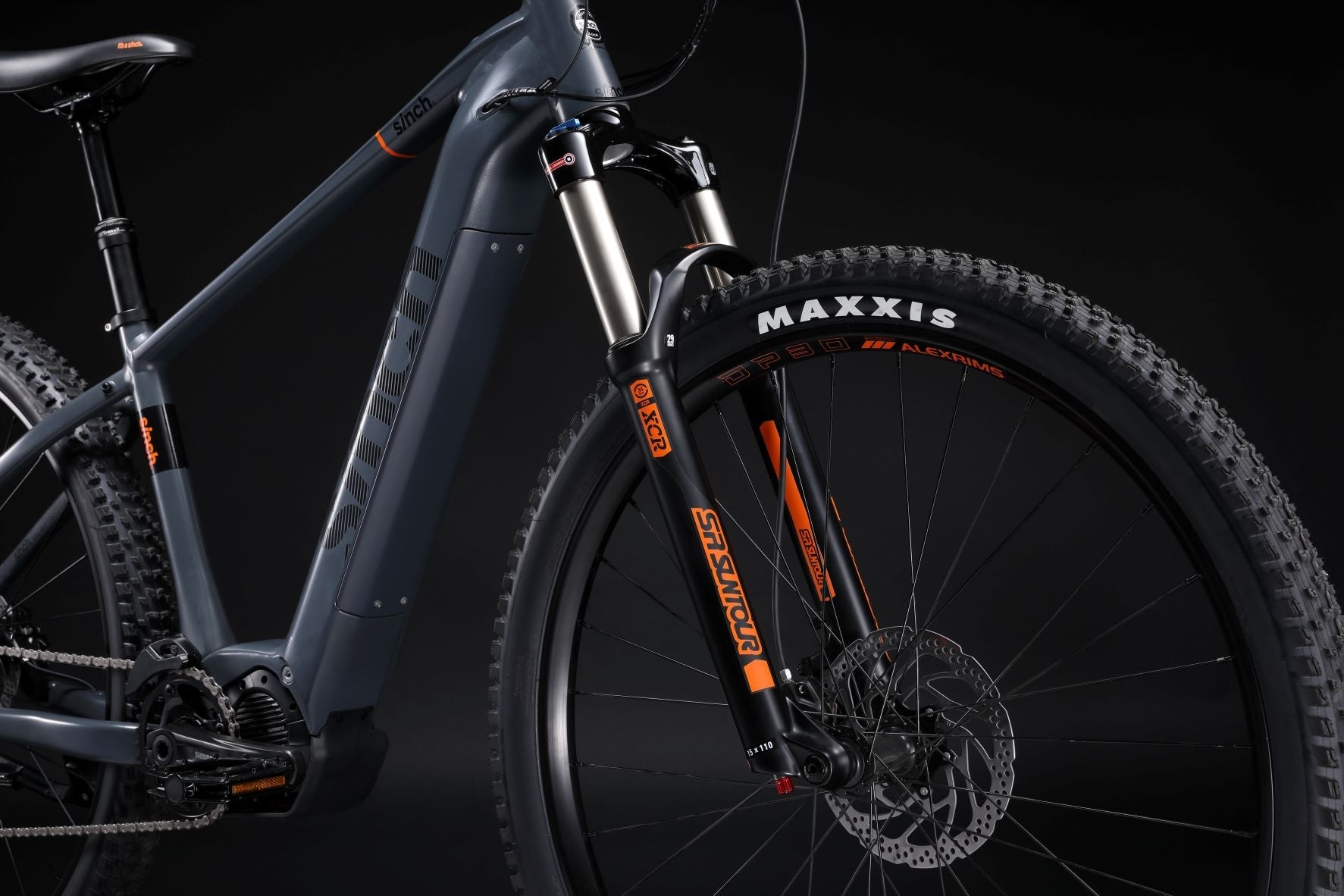

120mm of front air suspension travel is designed to make every ride comfortable.

SPECIFICATION

Frameset

Frame

6061 E Bike Specific Aluminum Frame with Fully intergrated Down Tube battery

Front Suspension

SR Suntour XCR34 AIR, 110 x 15mm boost thru axle, 120mm travel with low speed rebound and lockout

Motor

Drive Unit

Shimano STEPS DU-E7000 250watt 60Nm, 32km/hr

Battery

Shimano Steps BT-E8035, 36V 14Ah 504Wh

Display

Shimano Steps SC-E7000 Cycle Computer.

Wheels

HUBS

Shimano MT-400 Boost 15mm Thru axle 32H front, MT-200 Boost 141mm QR 32H Rear

RIMS

Alex DP30 Double Wall S=27.5" ; M,L,XL=29" 32H

TYRES

Maxxis Rekon S=27.5", M,L,XL=29" x 2.4" Foldable, 60tpi, Dual/TR/EXO puncture protection

Drivetrain

Shifter

Shimano Deore SL-M5130 10 Speed

Derailleur

Shimano Deore RD-M5130 GS Shadow Plus 10 Speed

Crankset

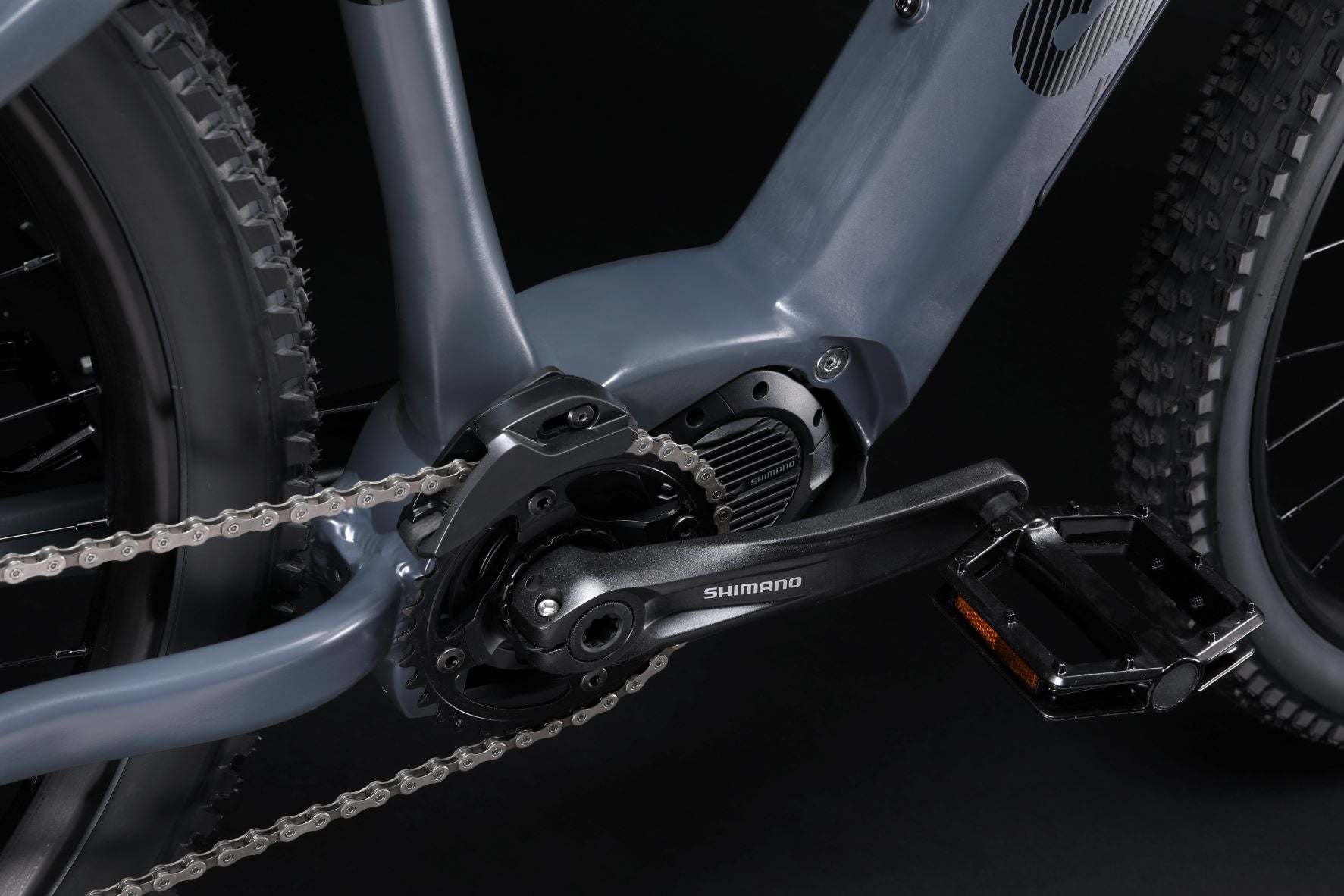

Shimano FC-E8000 with 34T Chainring and SM-CDE80 Chain device

Cassette

Shimano Cassette LG600 Link Glide 11-43T 10 Speed

Chain

Shimano CN-LG500 Link Glide 10 Speed

Pedals

Sinch Alloy platform

Components

Brakeset

Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors

Saddle

Sinch Sports Gel

Seat post

Suspension AIR Adjust Dropper, S=80, M=100, L,XL=120mm travel, Internal routing, 31.6mm

Bar

Sinch Alloy Riser, 15mm rise, 6° sweep, 680mm wide

Stem

Sinch Alloy 31.8mm, 7 degree.

Grips

Sinch Sport Gel Lock-on dual density

Accessories

Lights

N/A

Accessories

Shimano Battery Adapter BT-E80, Kickstand

Sizes

S=27.5", M,L,XL=29"

Weight

22.4kg (M Size) including battery

Geometry

S

27.5"

M

29"

L

29"

XL

29"

A - Seat Tube

380

410

460

510

B - Top Tube Horizontal

575

600

625

650

C - Chain Stay

465

465

465

465

D - Headtube Length

120

120

130

140

E - Head Angle

68.5

68.5

68.5

68.5

F - Seat Angle

73.5

73.5

73.5

73.5

G - Wheelbase

1116.6

1156.4

1182.3

1208.2

Stack

619.4

629.9

639.2

648.5

Reach

385.6

413.4

435.7

457.9

Crank Length

165

165

170

170

Stem Length

70

70

90

90

Size S M L XL

Rider Height

154-165cm

164-176cm

175-185cm

184-198cm
